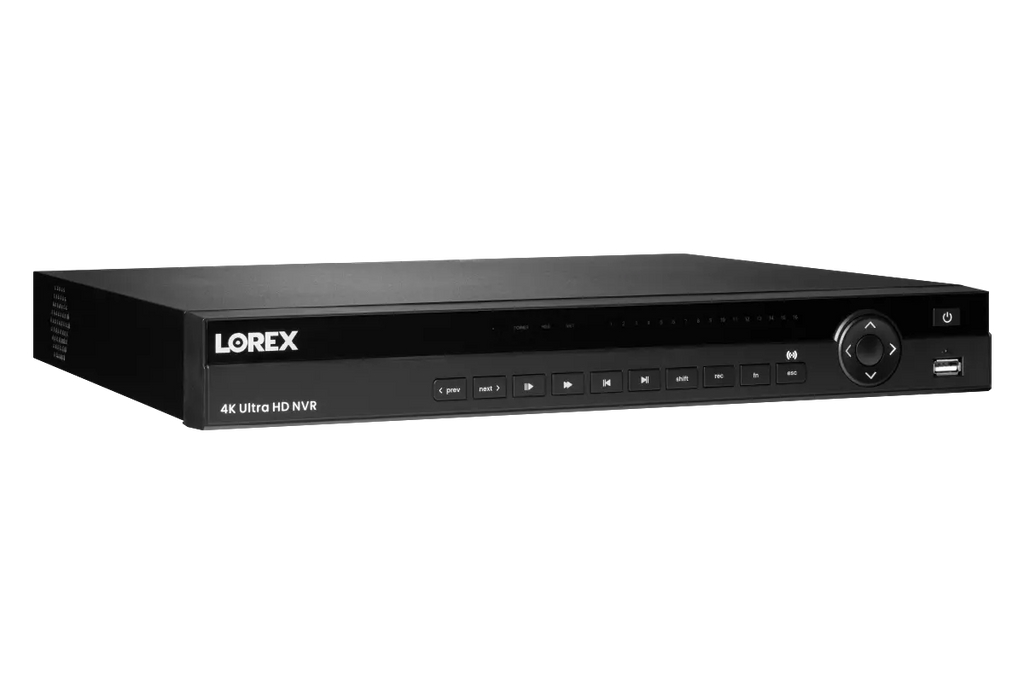

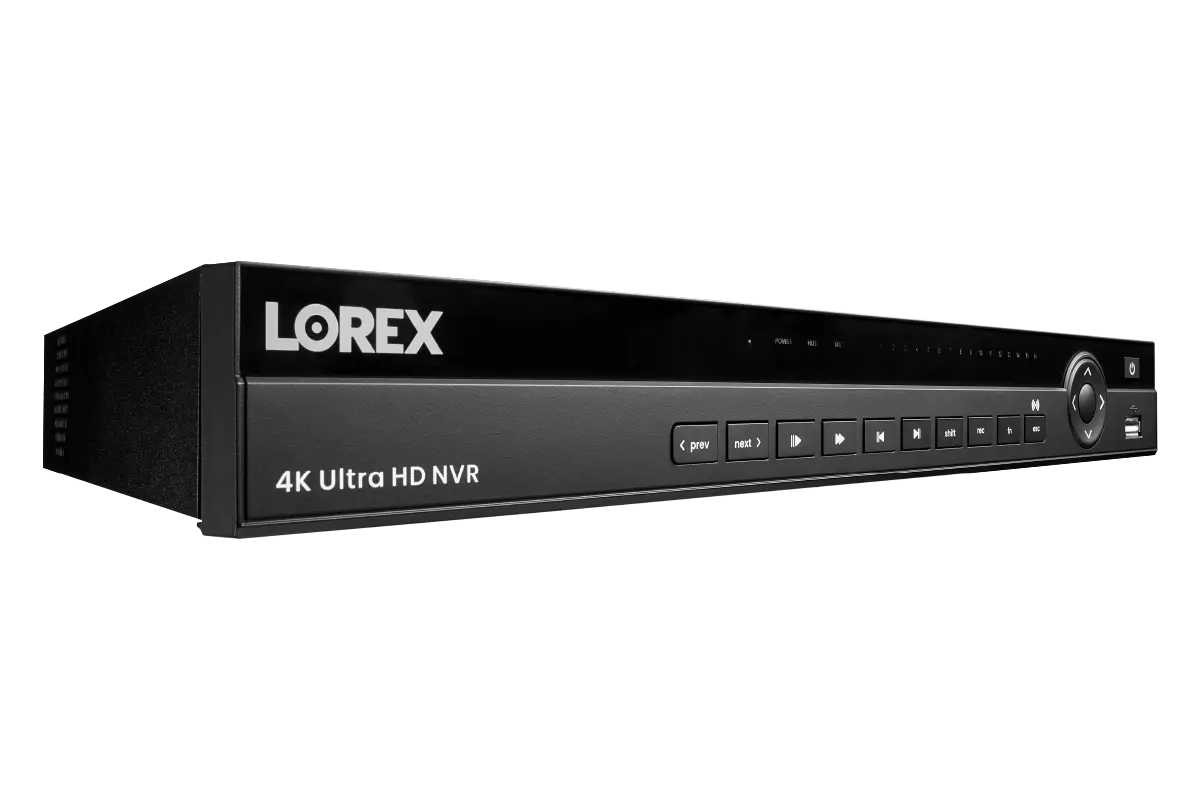

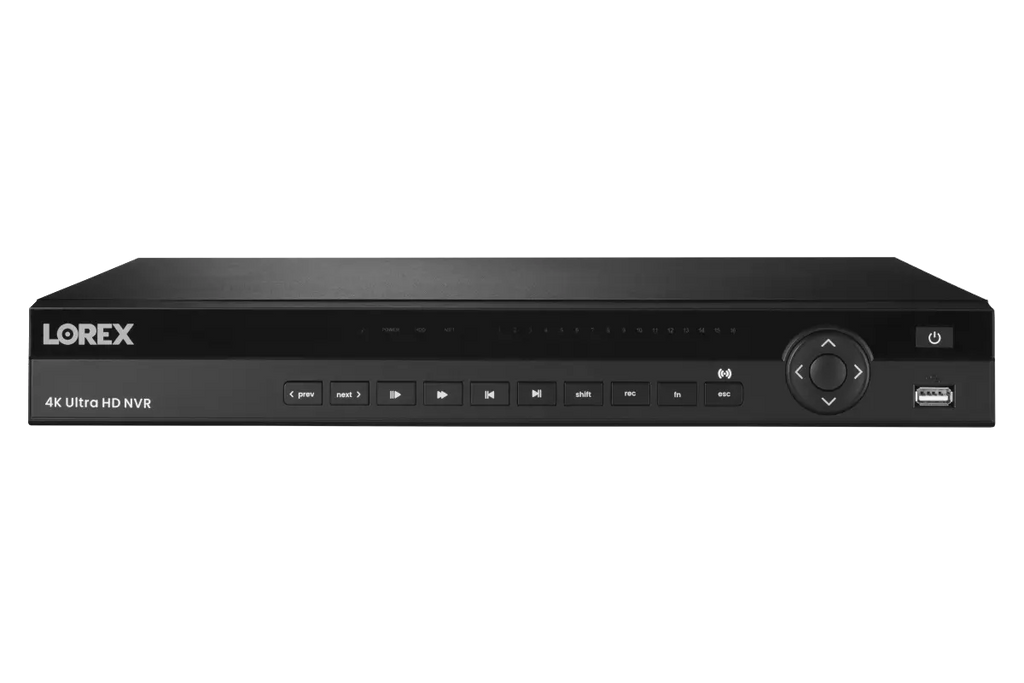

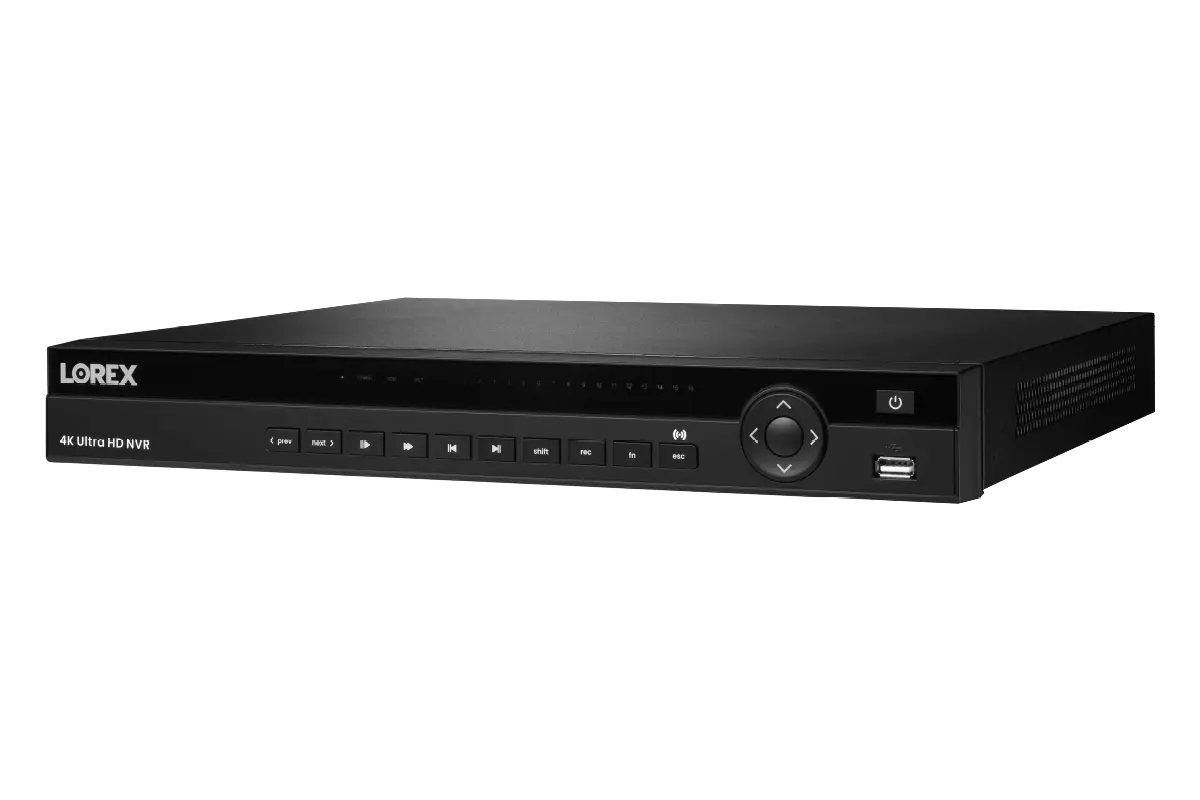

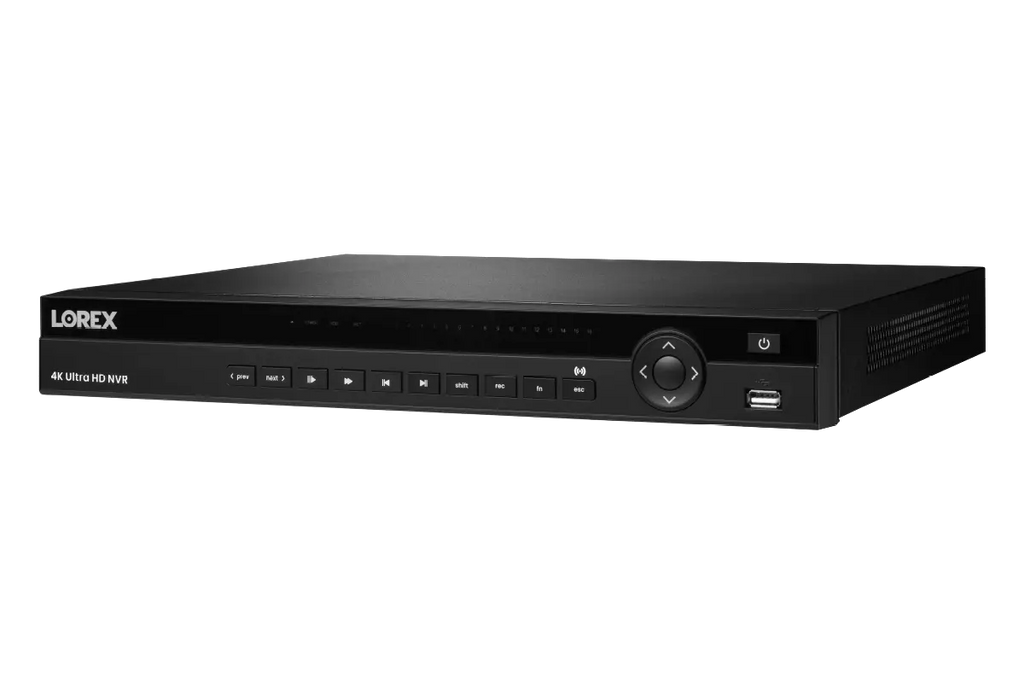

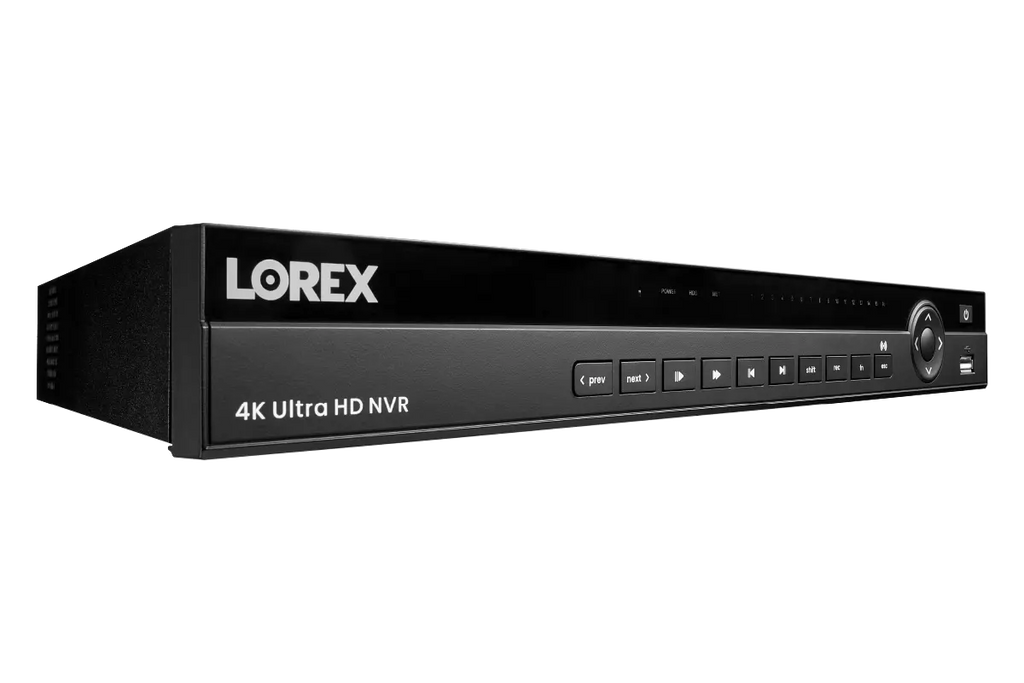

Lorex Elite Series 4K NVR — 16 Channels, 6TB, Integrated PoE
This is the backbone unit the Lorex wired lineup plugs into: a 16-channel Elite Series recorder that captures real-time 4K at up to 30 frames per second from every connected camera. The included 6TB security-grade hard drive stores weeks of footage locally — no subscription, no cloud fees — and two drive bays support expansion up to two 16TB drives for long-retention installs.

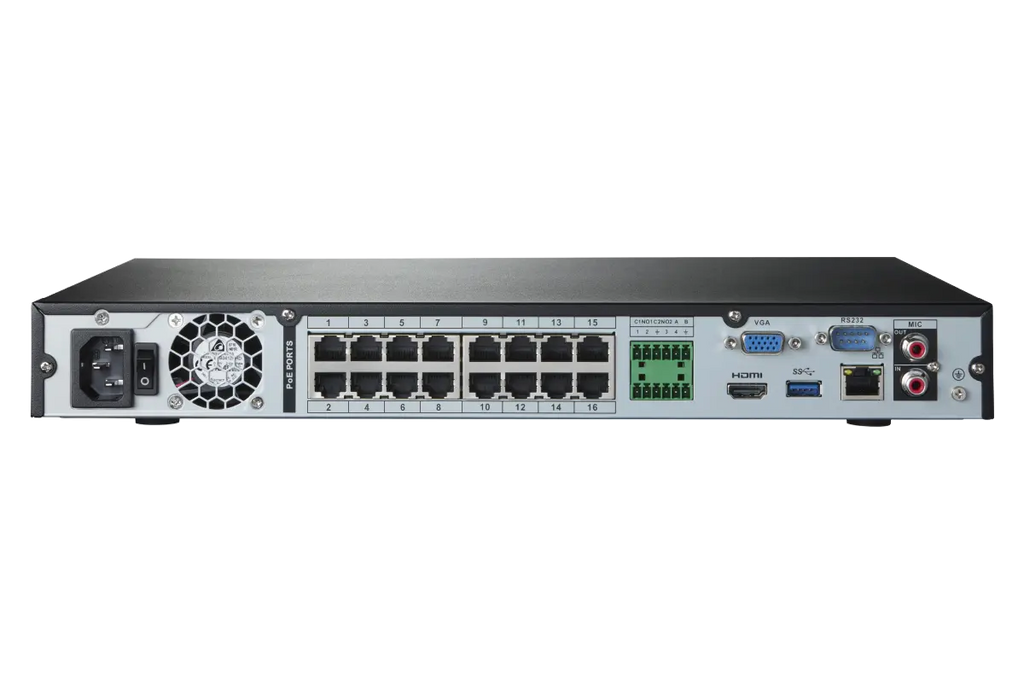

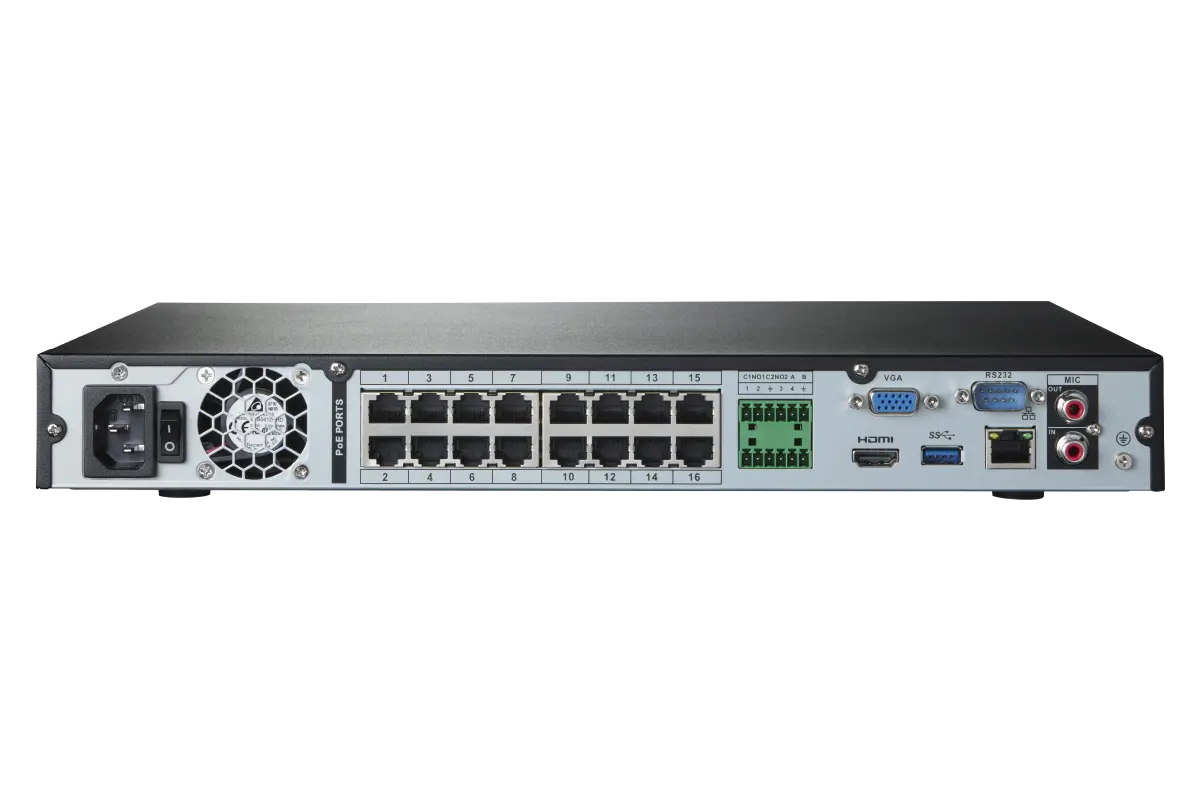

Integrated PoE ports power each camera and pull its video over one Ethernet cable — plug in, and the channel goes live. Onboard person and vehicle detection filters events so review time goes to what matters, and the Lorex Pro app provides remote live view, playback, and control. Model N884A66B.
Key Features
- 16 channels of 4K: real-time recording at up to 30 FPS per camera.
- 6TB security-grade storage: expandable to two 16TB drives across dual bays.
- Integrated PoE: single-cable power + video per camera, plug-and-play.
- Person & vehicle detection: event filtering at the recorder level.
- No monthly fees: everything records locally.
- Lorex Pro app: remote live view, playback, notifications.
- Broad compatibility: works across Lorex IP camera families.
What's Included
- Lorex Elite Series 4K NVR (6TB)
- Power adapter
- Ethernet cable
- HDMI cable
- USB mouse
- Quick start guide
Specifications
| Channels | Up to 16 cameras |
| Recording resolution | Up to 4K Ultra HD |
| Frame rate | Up to 30 FPS |
| Storage | 6TB built-in; expandable up to 2 × 16TB |
| PoE | Integrated PoE ports |
| Detection | Person & vehicle |
| Remote access | Lorex Pro mobile app |
| Fees | None — local storage |
| Model | N884A66B |
Is the Elite 16-channel NVR right for you?
The recorder for serious wired builds — 16 channels of real-time 4K, fee-free local storage, and room to grow.
Buy this NVR if:
- You're building or expanding a wired system toward 8–16 cameras and want every channel at full 4K.
- Long retention matters — dual bays take you to 32TB total.
- You want zero recurring fees, with footage stored on-site.
Good to know before you order:
- Cameras are sold separately — pair it with the N3 fixed turret, N4 Lite turret, or budget A14 turret.
- Prefer recorder and cameras in one box? The Nocturnal 3 complete system ships ready to run.
- Need fewer channels or less storage? See the 4K Pro Series NVR (N884A64B).
Not sure which recorder fits? Call a specialist at (786) 761-9155 — we'll help you choose honestly.
Frequently asked questions
Which cameras work with this NVR?
It's compatible across Lorex IP camera families — N-series, N4 Lite, A-series, and H-series wired PoE cameras connect directly to the integrated PoE ports.
Are there monthly fees?
No — footage records to the built-in 6TB drive. Remote viewing through the Lorex Pro app is included without subscription.
How much footage does 6TB hold?
Retention depends on camera count, resolution, and recording mode — continuous 4K on many channels consumes storage faster than event-based recording. The dual bays accept up to two 16TB drives when you need more.
How do cameras connect?
One Ethernet cable per camera into the NVR's PoE ports — the cable carries both power and video, and the channel appears automatically.
Can I view my system remotely?
Yes — the Lorex Pro app (iOS/Android) and desktop clients provide live view, playback, and notifications from anywhere.
How is it shipped?
Ships free and insured, typically arriving in 7–10 days with tracking.
