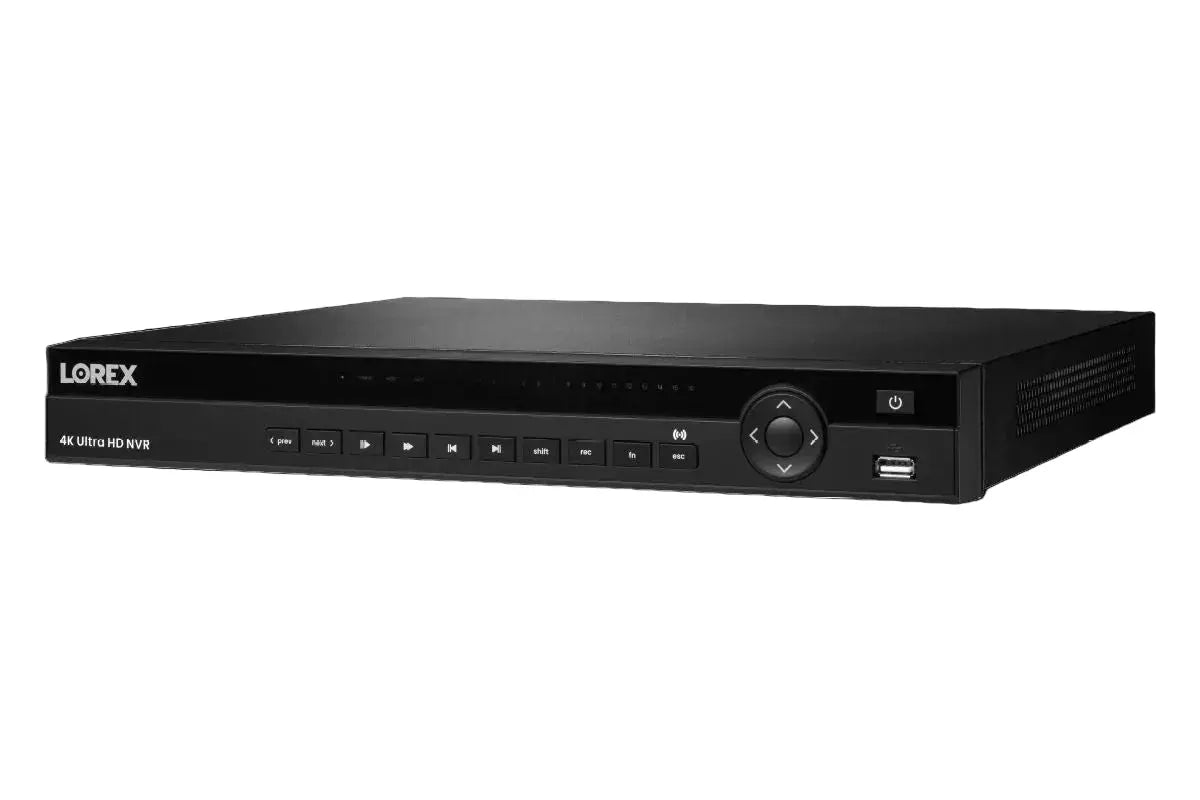

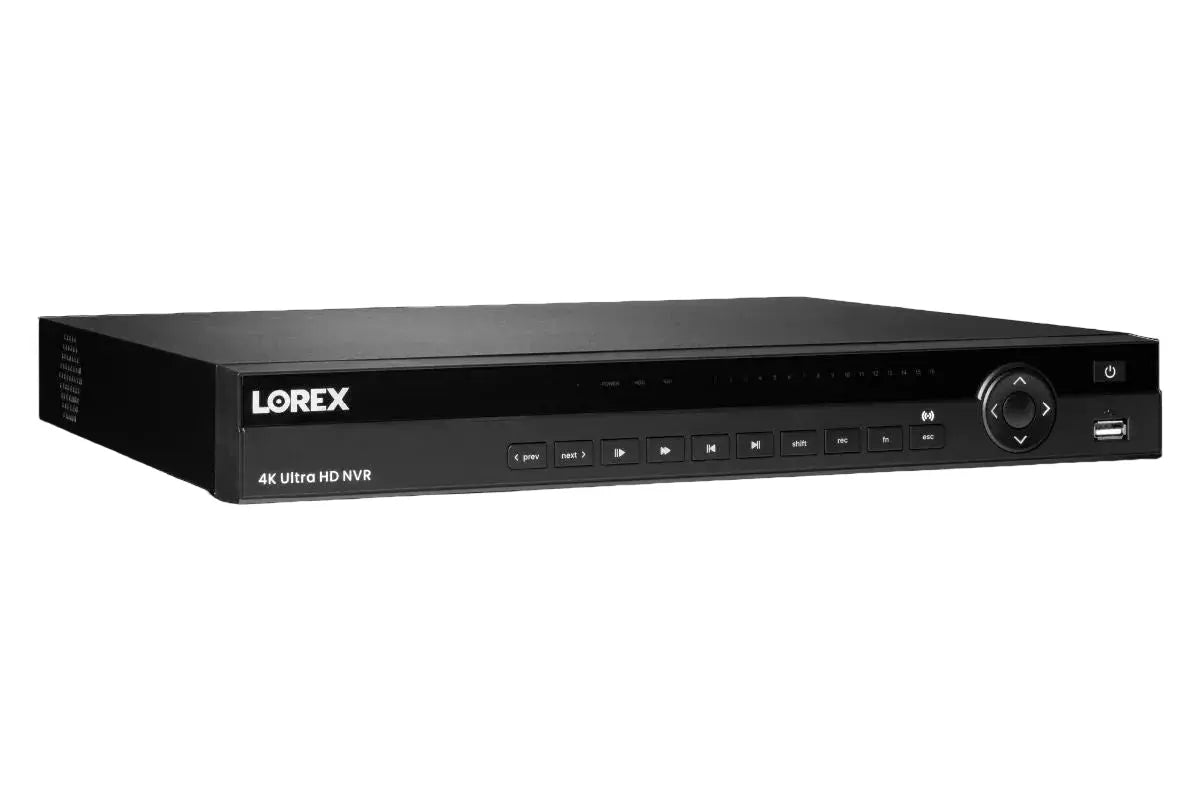

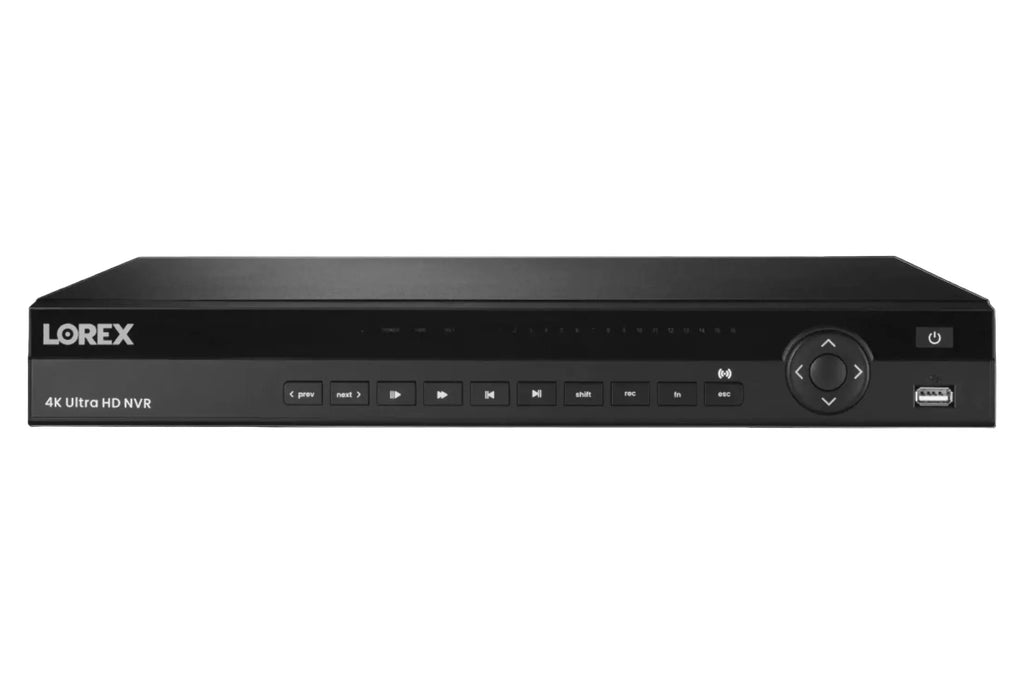

Experience professional-grade security recording with this 4K Pro Series Network Video Recorder that delivers ultra HD resolution recording at 30 frames per second. This advanced NVR supports up to 16 wired IP cameras and features intelligent person and vehicle detection capabilities for enhanced security monitoring.
Built with a generous 4TB storage capacity that can be expanded up to 32TB (2 × 16TB drives), this recorder ensures you never miss important footage. The system integrates seamlessly with the Lorex Pro mobile app, allowing remote access and monitoring from anywhere with a high-speed internet connection.

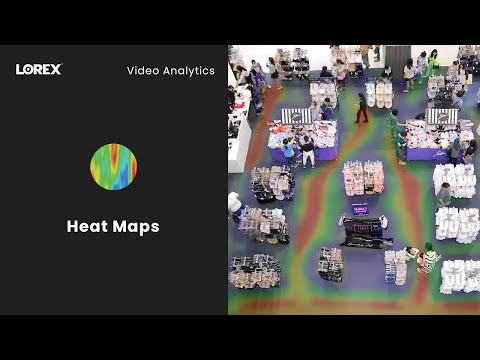

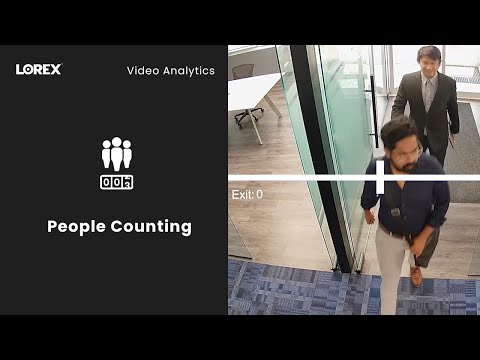

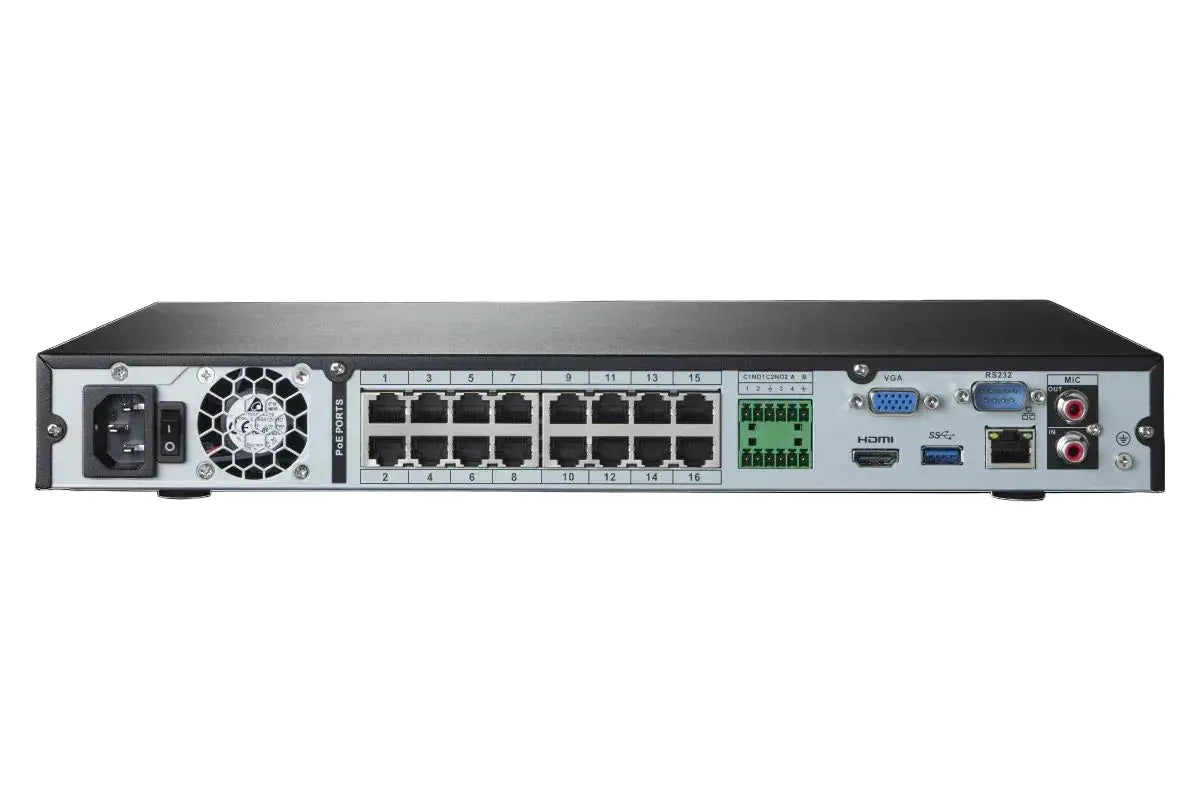

Advanced analytics capabilities include heatmap generation, people counting, and smart search functionality, making it easy to analyze footage and identify specific events. The recorder supports both HDMI and VGA monitor connections for flexible viewing options, while multiple USB ports provide convenient connectivity for backup and configuration.
Download Full Specs
| Specification |
Value |
| Dimensions (W×D×H) |
12.9 x 9.6 x 2.1" (328 x 245 x 53 mm) |
| Weight |
2.75 lbs. / 1.26 kg (excl. HDD) |
| Storage Capacity |
Built-in 4TB, Expandable up to 2 × 16TB |
| Camera Channels |
16 Wired IP Cameras |
| Recording Resolution |
4K Ultra HD |
| Recording Frame Rate |
30 FPS |
| App Compatibility |
Lorex Pro App |
| Video Analytics |
Person and Vehicle Detection, Heatmap, People Counting, Smart Search |
| Monitor Outputs |
HDMI, VGA |
| Network Connection |
LAN (Ethernet) |
| Power Connection |
Power Cord Included |
