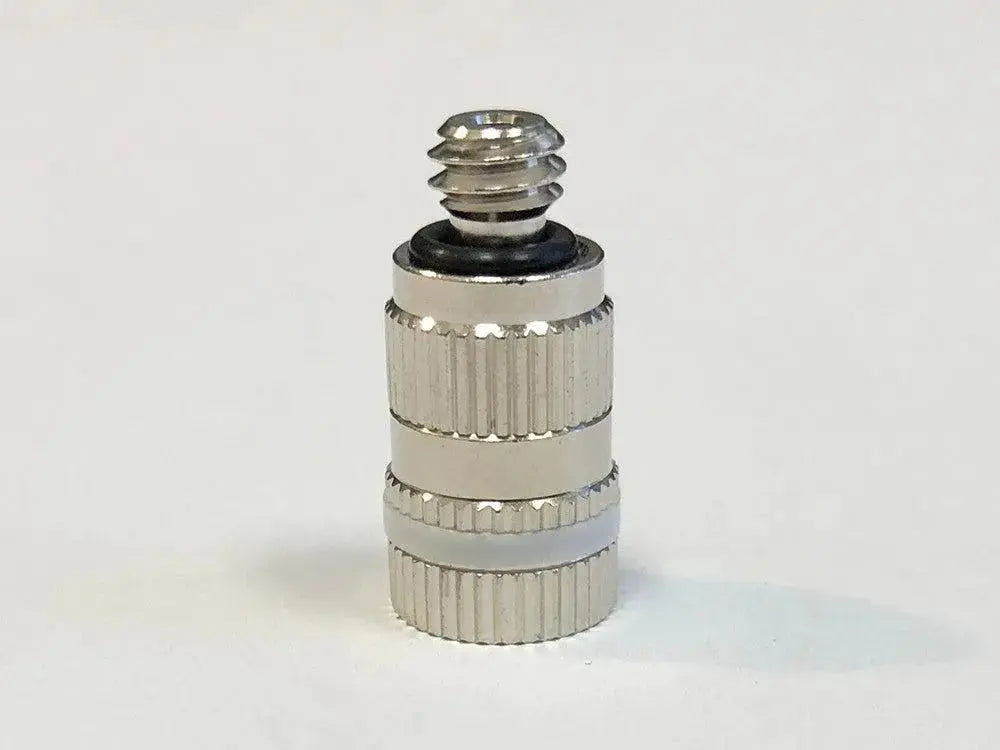

MistAmerica White Ring Ruby Nozzles are the lowest-flow option in the ruby nozzle lineup — engineered for very high humidity climates where minimal water output is needed for effective cooling.
White Ring ruby nozzles emit .006 GPM per nozzle and work best on Mist360 misting systems positioned between 7 and 10 feet above the floor. Ruby orifice nozzles last longer than traditional stainless steel nozzles, maintain consistent mist quality over time since the orifice won't widen, and are cleanable for long-term cost savings. Clean by soaking in CLR for 3–5 minutes, then rinse thoroughly under warm water. Do not scrub or manually de-clog the orifice.
| Specification | Detail |
|---|---|
| Ring Color | White |
| Flow Rate | .007 GPM per nozzle |
| Orifice Type | Ruby — will not grow or degrade over time |
| Best Climate | Very high humidity |
| Fan Height | Works best 7–10 feet above floor |
| Compatible With | All Mist360 misting systems |
| Max Nozzles (600 PSI pump) | 8 white ring nozzles |
| Max Nozzles (1000 PSI pump) | 32 white ring nozzles |
| Cleaning | Soak in CLR 3–5 minutes, rinse with warm water. Do NOT scrub orifice. |
| Cleaning Frequency | Once per season, prior to start of use |
