Lorex Connect X Series 4K PTZ PoE Camera — 30× Optical Zoom, 360° Pan/Tilt & AI Auto-Tracking

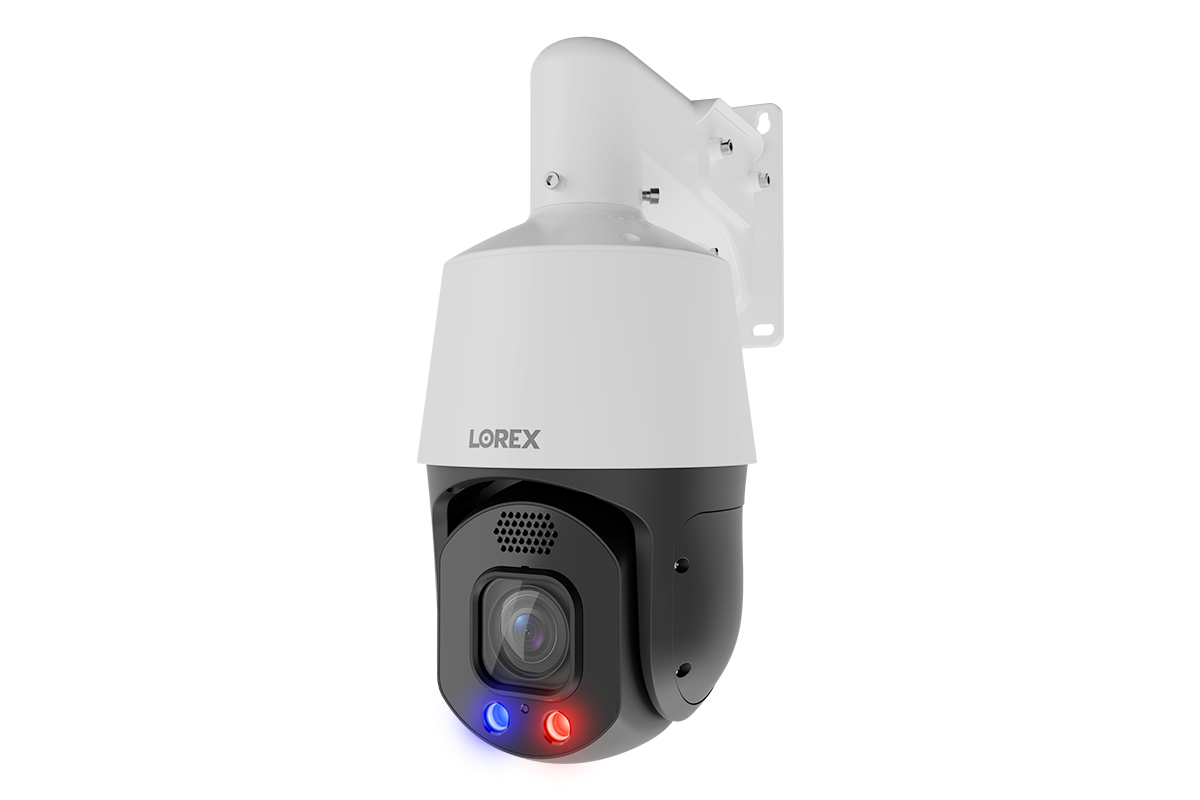

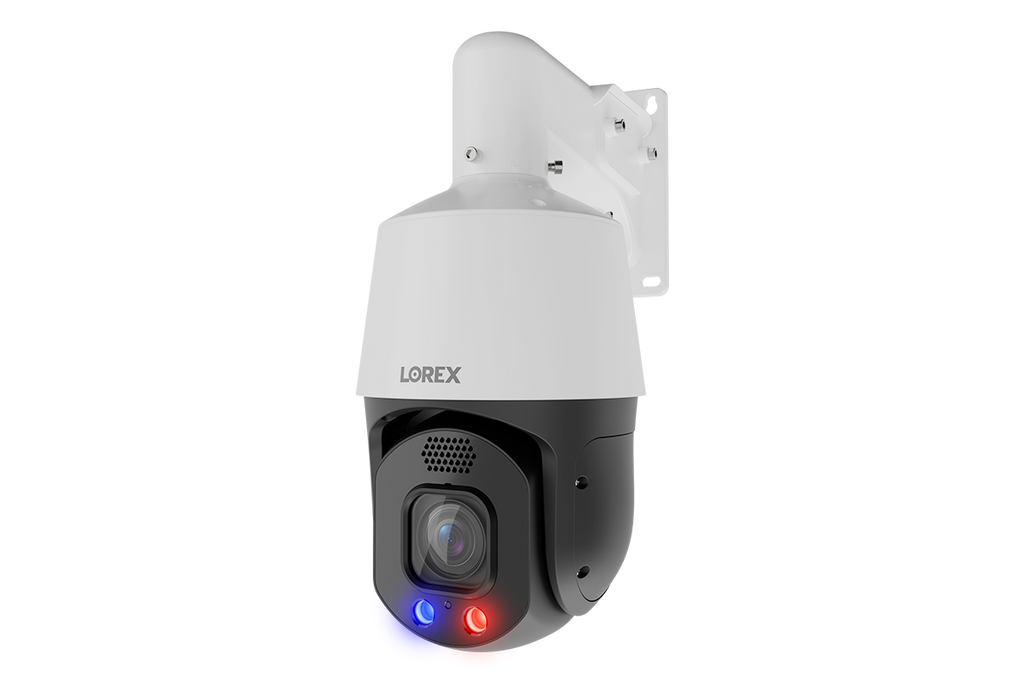

The Lorex Connect X Series 4K PTZ (Model CNX01P-DPW-AB1) is a commercial pan-tilt-zoom camera built to actively cover large areas — parking lots, yards, lots, and building perimeters. It delivers real-time 4K video at 30fps with a powerful 30× optical zoom and full 360° pan with tilt, so operators can sweep a wide scene and zoom in on detail on demand. AI-powered analytics, smart auto-tracking, and virtual fencing help teams detect activity and respond faster. As an ONVIF-conformant camera, it also works with compatible third-party NVRs and VMS platforms.
CABLE NOT INCLUDED

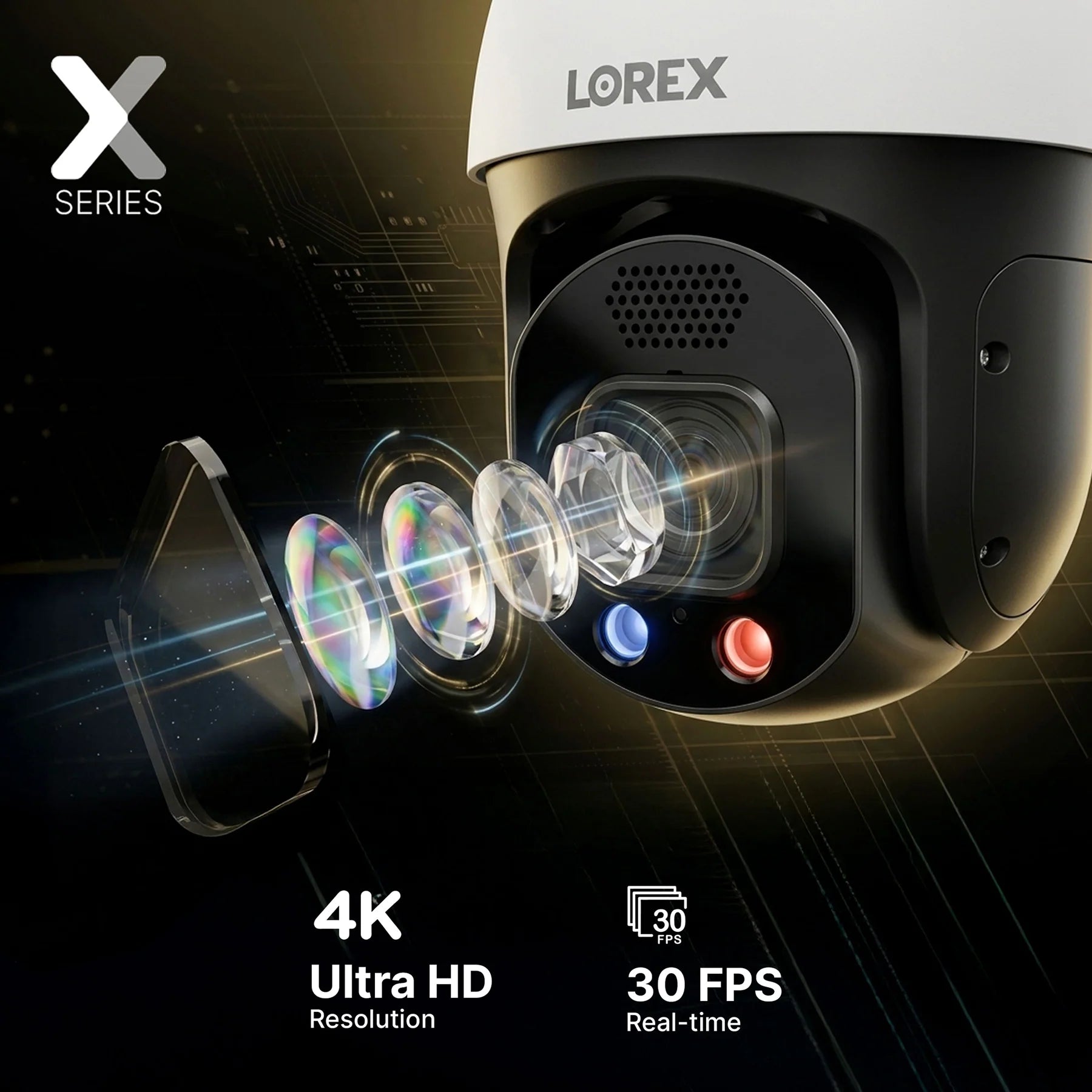

- 4K (8MP) at real-time 30fps — smooth, high-resolution video across the whole scene.
- 30× optical zoom + 360° pan / tilt — sweep wide areas and zoom in on faces, plates, or activity far downrange.

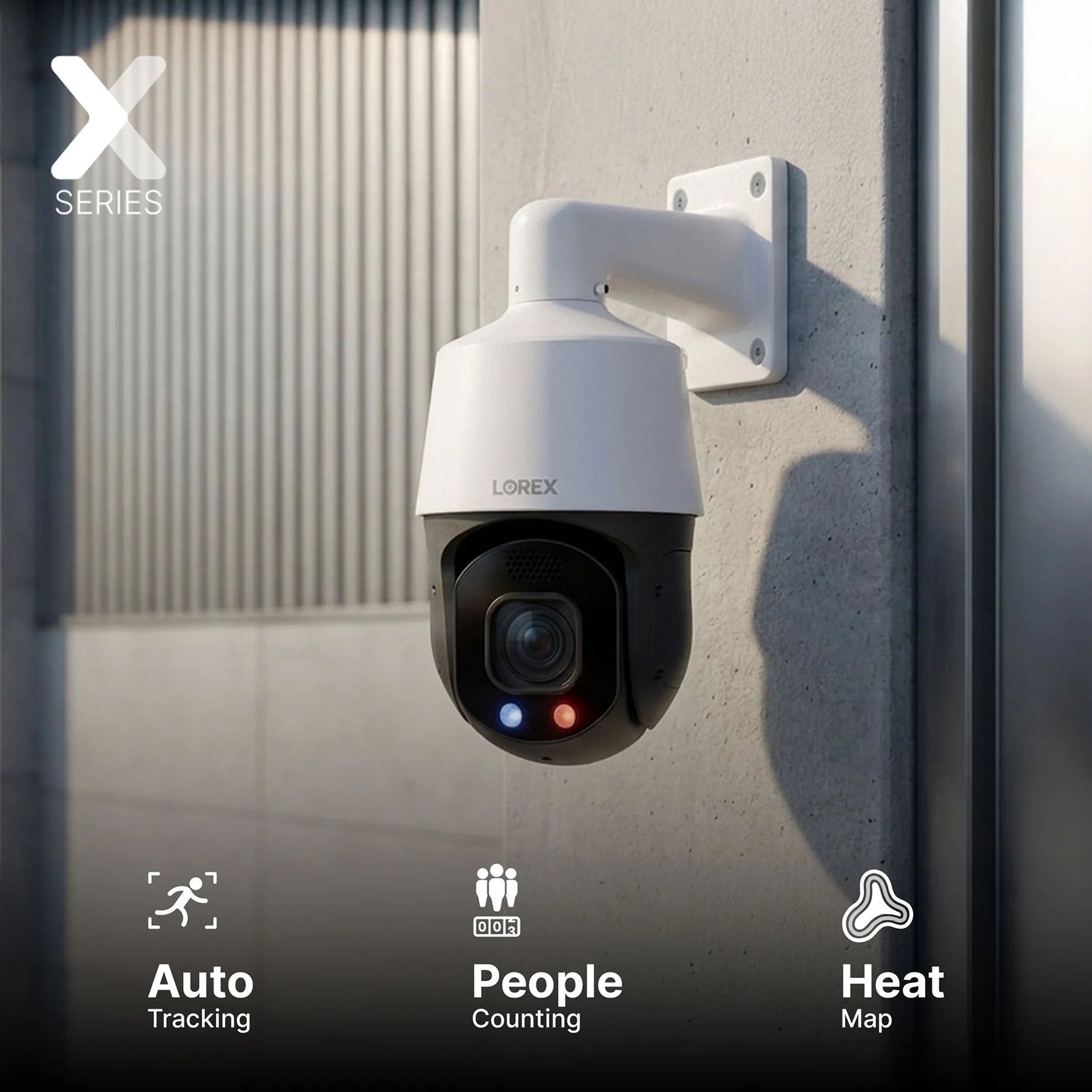

- AI auto-tracking & virtual fencing — the camera can follow movement and flag boundary crossings automatically.

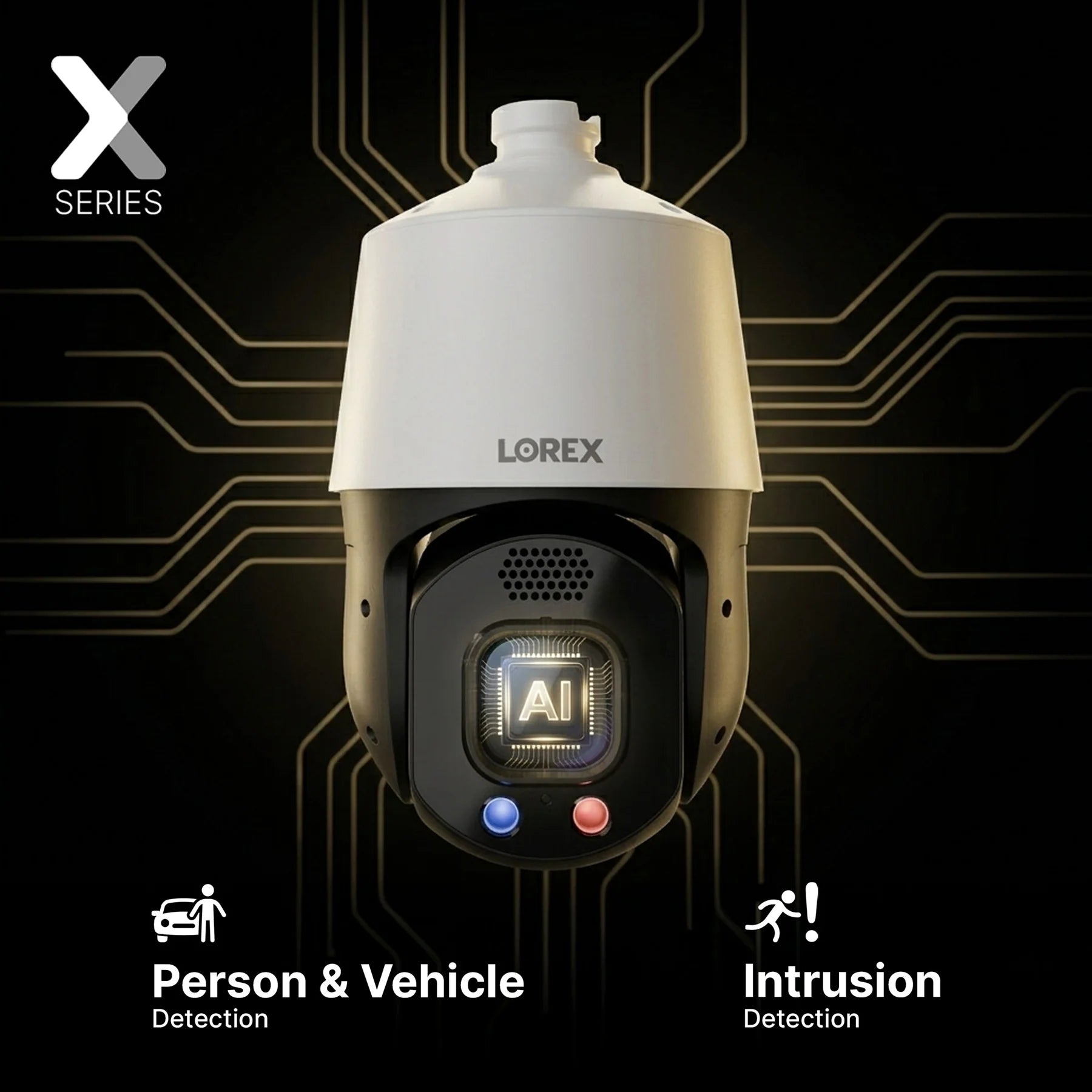

- Full AI analytics suite — person, vehicle, people counting, heatmap, loitering, fire, intrusion, and wrong-way detection.
- Advanced deterrence + two-way audio — warn intruders with light/siren and talk through the camera.
- Color night vision & WDR — usable color detail after dark and balanced exposure in high-contrast scenes.

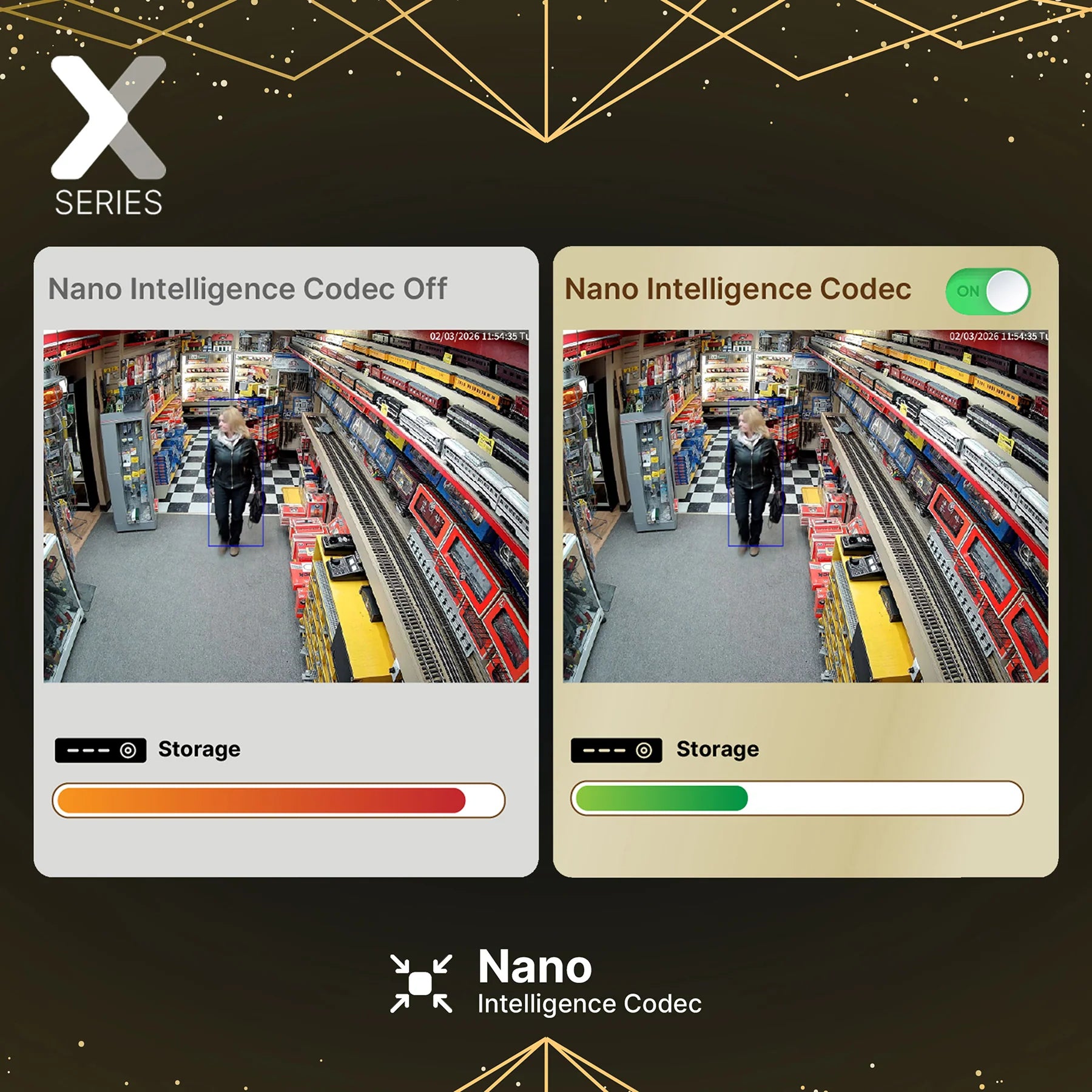

- Nano Intelligence codec — efficient compression that stretches recorder storage and bandwidth.
- IP66 weatherproof + heated anti-fog glass — built for year-round outdoor use in tough conditions.
- ONVIF conformant (Profile G, M, S, T) — integrates with third-party ONVIF NVRs and VMS, not just Lorex.
- No monthly fees — records locally to your NVR and views through the free Lorex Connect app.
Key specifications
| Model | CNX01P-DPW-AB1 (Lorex Connect X Series) |
| Camera type | 4K PTZ dome, PoE (wired) — recorder required |
| Resolution | 4K (8MP) |
| Frame rate | Real-time 30fps |
| Zoom | 30× optical |
| Pan / Tilt | 360° pan with tilt; AI auto-tracking |
| AI analytics | Person, vehicle, people counting, heatmap, loitering, fire, intrusion, wrong-way |
| Night vision | Color night vision |
| Audio / Deterrence | Two-way audio; advanced light & siren deterrence |
| Compression | Nano Intelligence codec |
| Weather rating | IP66; heated anti-fog glass; WDR |
| Third-party support | ONVIF conformant — Profile G, M, S, T |
| App | Lorex Connect (iOS / Android); no monthly fees |
| Requires | An X Series or compatible ONVIF NVR (sold separately) |
| Manual | CNX01P-DPW-AB1 |
Because it can pan a full circle and zoom 30×, one PTZ can do the work of several fixed cameras across an open area — while AI auto-tracking keeps a moving subject in frame without an operator. It's a natural fit for lots, campuses, storage yards, and any wide perimeter where you need reach and control rather than a single fixed view.
Recorder required. This is a wired PoE camera that records to a network video recorder — pair it with a Lorex X Series NVR (such as the Connect XC) or a compatible ONVIF NVR, sold separately. Camera (Ethernet) cables are sold separately; a power adapter and cable are included in the box. Not sure how to spec the recorder, cabling, or PoE for your site? Call us and we'll help.
In the box: X PTZ 4K Dome Camera (30× zoom) · wall mount · safety chain · power adapter and cable · 4 × expansion bolts · 3 × mounting screws · Allen key · Torx key · ESD gloves · weather-resistant RJ45 cable gland · 6-pin wire connector.
Is the X Series 4K PTZ right for you?
It's built for actively covering large open areas — where you need to sweep wide, zoom in far, and let AI track movement. If you only need a fixed view of a door or driveway, a fixed bullet or turret camera is a better value.
Buy the X Series PTZ if:
- You're covering a parking lot, yard, campus, or long perimeter that a fixed camera can't.
- You want 30× optical zoom, 360° pan, and AI auto-tracking to follow activity.
- You're building or expanding an X Series or ONVIF system and want commercial-grade analytics.
Good to know before you order:
- It's a wired camera and requires a recorder — an X Series NVR or compatible ONVIF NVR, sold separately.
- Camera (Ethernet) cables are sold separately; a power adapter is included.
- As a PTZ it draws more power than a fixed camera — plan for High PoE (PoE+/++) or use the included adapter.
- Records locally to your NVR with no monthly fee; ONVIF lets you mix it with third-party systems.
Not sure which recorder or how to wire it? Call a specialist at (786) 761-9155 — we'll spec it with you honestly.
Frequently asked questions
Does this camera need a recorder?
Yes. It's a wired PoE camera that records to an NVR — pair it with a Lorex X Series NVR or a compatible ONVIF NVR, sold separately. It doesn't record on its own.
Does it work with non-Lorex systems?
Yes. It's ONVIF-conformant (Profile G, M, S, T), so it integrates with compatible third-party ONVIF NVRs and VMS platforms in addition to Lorex X Series recorders. Some advanced features may vary with third-party systems.
How far can it zoom, and can it track movement?
It has 30× optical zoom with 360° pan and tilt, plus AI auto-tracking that can follow a moving subject automatically and virtual fencing to flag boundary crossings.
What AI analytics does it support?
Person, vehicle, people counting, heatmap, loitering, fire, intrusion, and wrong-way detection. Availability of specific analytics can depend on your recorder and configuration.
Is it weatherproof?
Yes — it's rated IP66 for outdoor use and has heated anti-fog glass for cold and humid conditions, plus WDR for high-contrast scenes.
Are cables included?
A power adapter and cable are included, but the camera (Ethernet) cable is sold separately so you can run the exact length your install needs.
Is there a monthly fee?
No. It records locally to your NVR with no mandatory subscription. Optional cloud features are available through the Lorex Connect app if you want them.
What warranty does it carry?
It's backed by the full Lorex manufacturer warranty. We're an authorized U.S. Lorex dealer, so your coverage is honored as intended.
How is it shipped?
Ships free and insured, typically arriving in 7–10 days with tracking.
