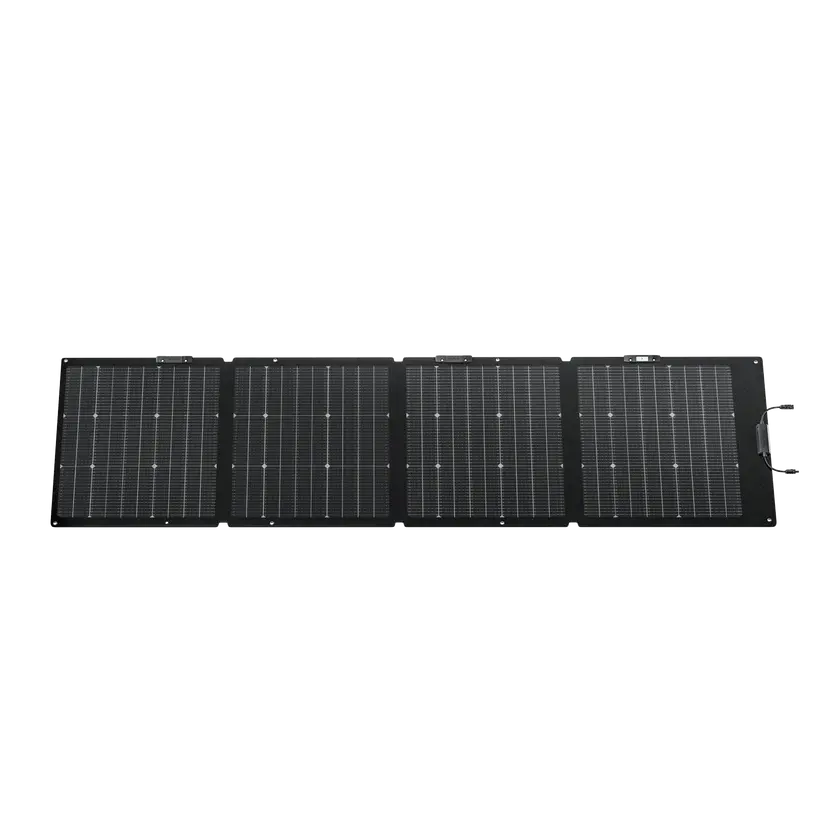

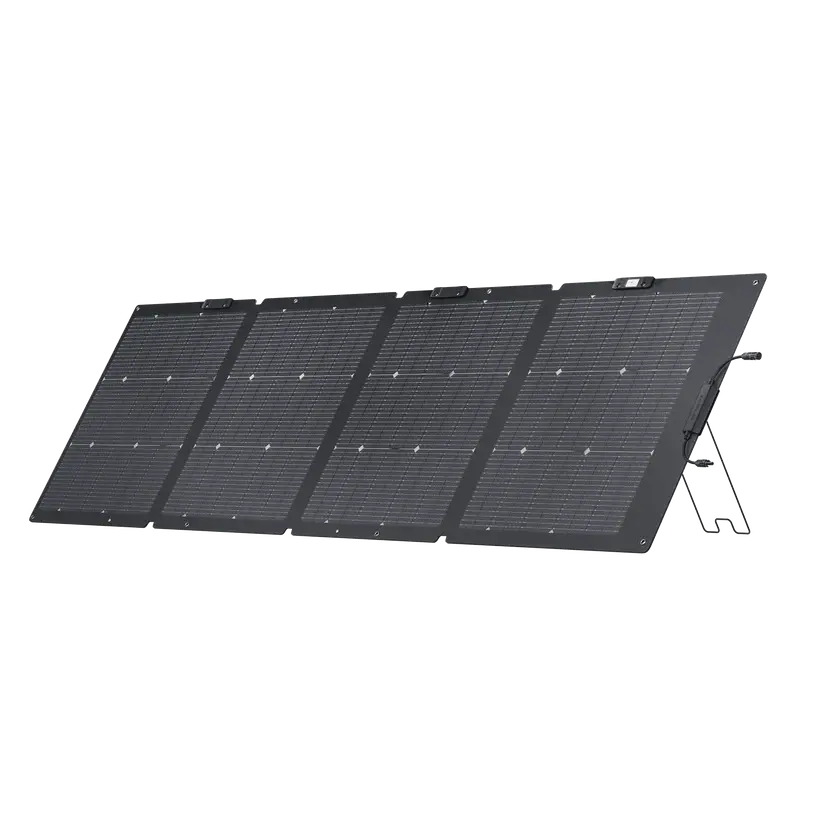

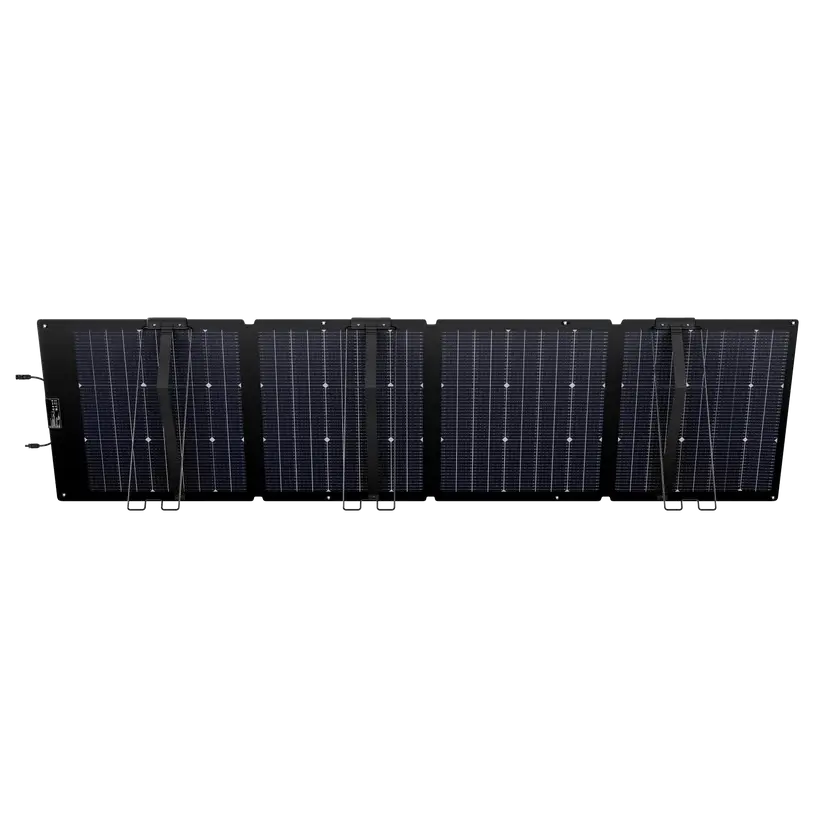

EcoFlow NextGen 220W Bifacial Portable Solar Panel — Dual-Sided TOPCon, Up to 28% More Energy Capture
The NextGen 220W Bifacial Solar Panel captures sunlight from both sides — 220W from the front and 175W from the rear — for up to 28% more energy than a single-sided panel, combined with N-Type TOPCon technology for 25% conversion efficiency and a 30–60° adjustable angle bracket with integrated solar angle guide.
What's in the Box
- EcoFlow NextGen 220W Bifacial Portable Solar Panel
- XT60i Charging Cable
- Protective Bag
- Quick Start Guide, Safety Instructions, Warranty Card
Key Features
-
Bifacial Dual-Sided Design — Up to 28% More Energy — 220W front side captures direct sunlight; 175W rear side harvests ambient and reflected light simultaneously for significantly more total energy output
-
25% N-Type TOPCon Conversion Efficiency — Industry-leading portable solar technology; more compact and lighter (7.0 kg) than comparable P-Type PERC panels (5.6–9.5 kg)
-

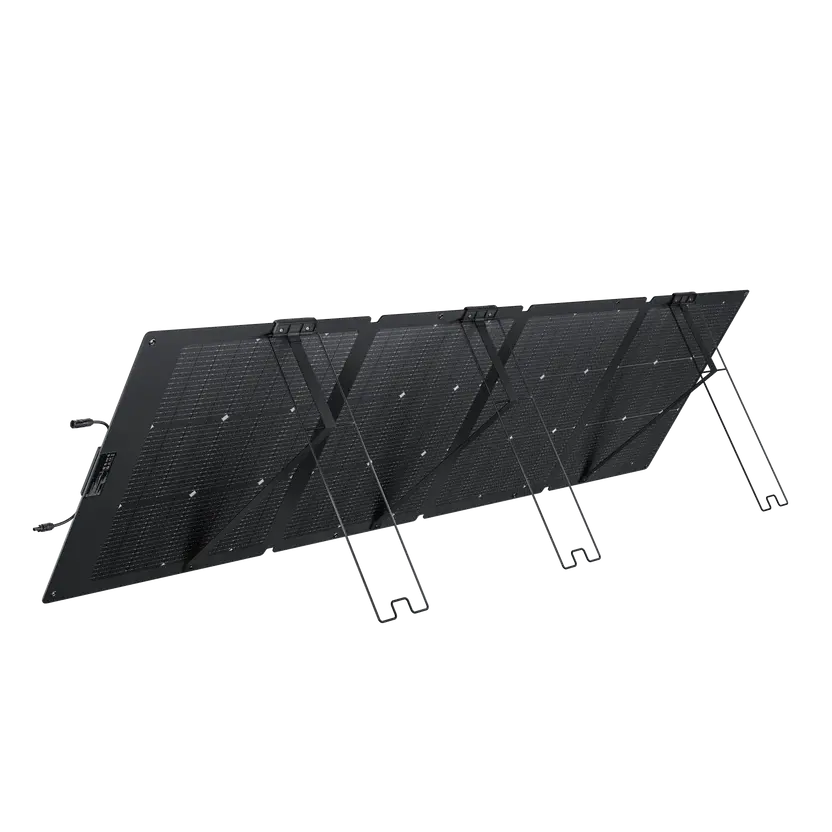

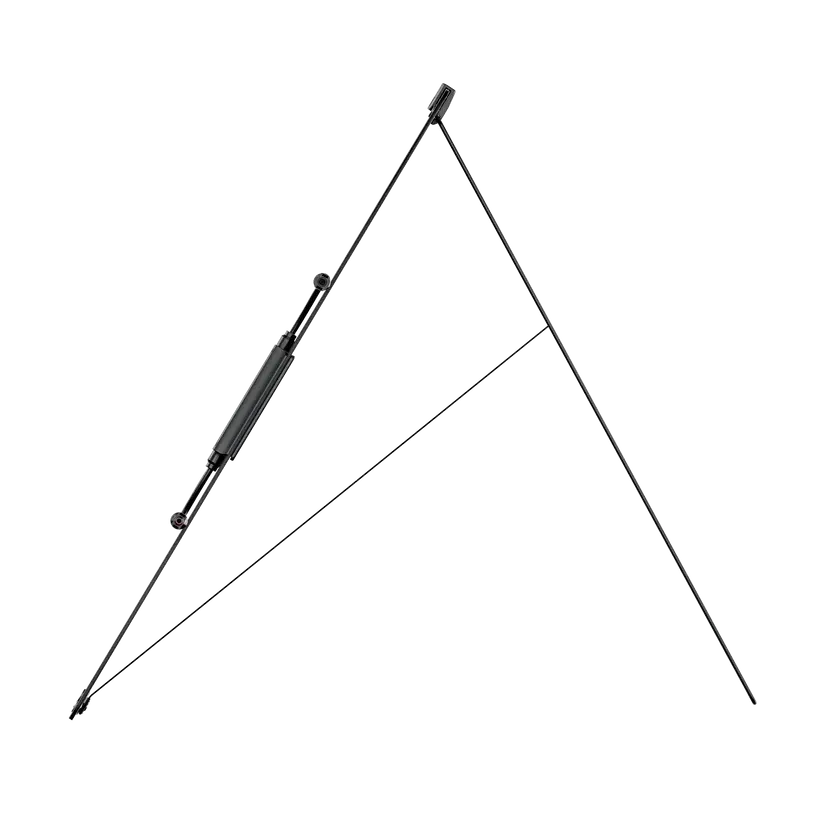

30–60° Adjustable Angle Bracket + Solar Angle Guide — Integrated stand adjusts in 30° increments; built-in angle guide ensures sunlight hits the panel at the optimal 90° angle at all times
-
IP68 Waterproof & High-Temperature Resistant — Tempered glass and ETFE coating; designed to maintain high performance in rainfall, near water, and high ambient temperatures
-

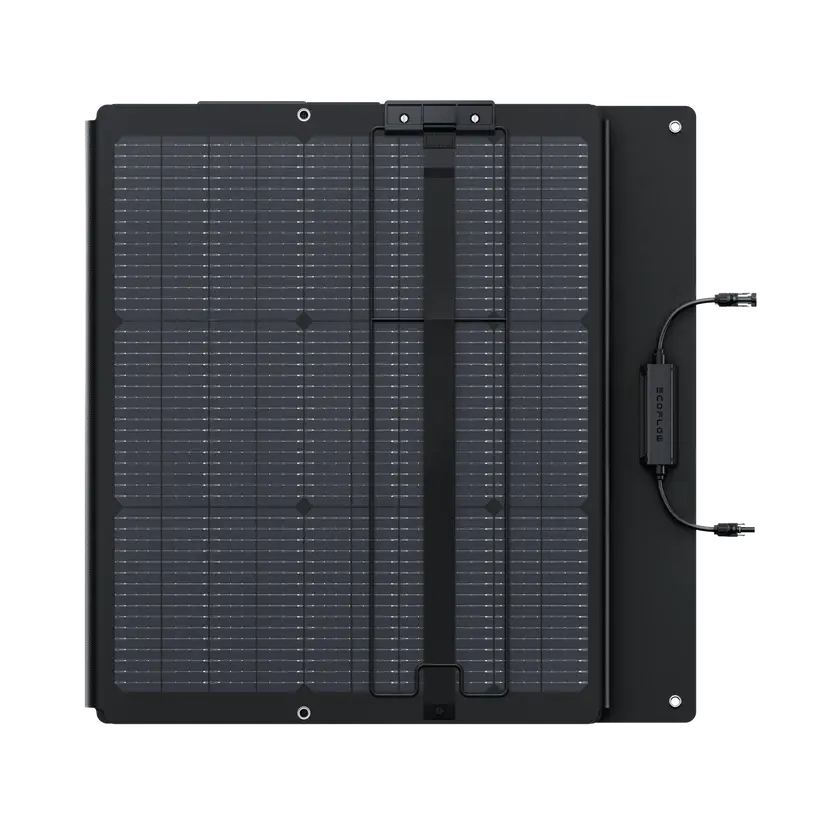

Compact Folding Design — Folds to 615×590×32mm for easy storage in vans, RVs, and closets; XT60i charging cable and protective bag included
-
12-Month Warranty — XT60i connector compatible with all EcoFlow power stations that accept XT60i solar input
Specifications
| Specification |
Detail |
| Rated Power |
220W (±5W) Front / 175W Rear |
| Cell Type |
N-Type TOPCon monocrystalline silicon |
| Efficiency |
25% |
| Open Circuit Voltage (Voc) |
21.5V |
| Max Power Voltage (Vmp) |
18.4V |
| Short Circuit Current — Front (Isc) |
12.4A |
| Max Power Current — Front (Imp) |
11.9A |
| Short Circuit Current — Rear (Isc) |
9.9A |
| Max Power Current — Rear (Imp) |
9.5A |
| Connector Type |
Photovoltaic connectors / XT60i (cable included) |
| Stand |
30–60° integrated adjustable bracket with solar angle guide |
| Net Weight |
Approx. 7.0 kg / 15.4 lbs |
| Unfolded Dimensions |
615 × 2155 × 25 mm / 24.2 × 84.8 × 1.0 in |
| Folded Dimensions |
615 × 590 × 32 mm / 24.2 × 23.2 × 1.3 in |
| Waterproof / Dustproof |
IP68 |
| Warranty |
12 Months (US) |
