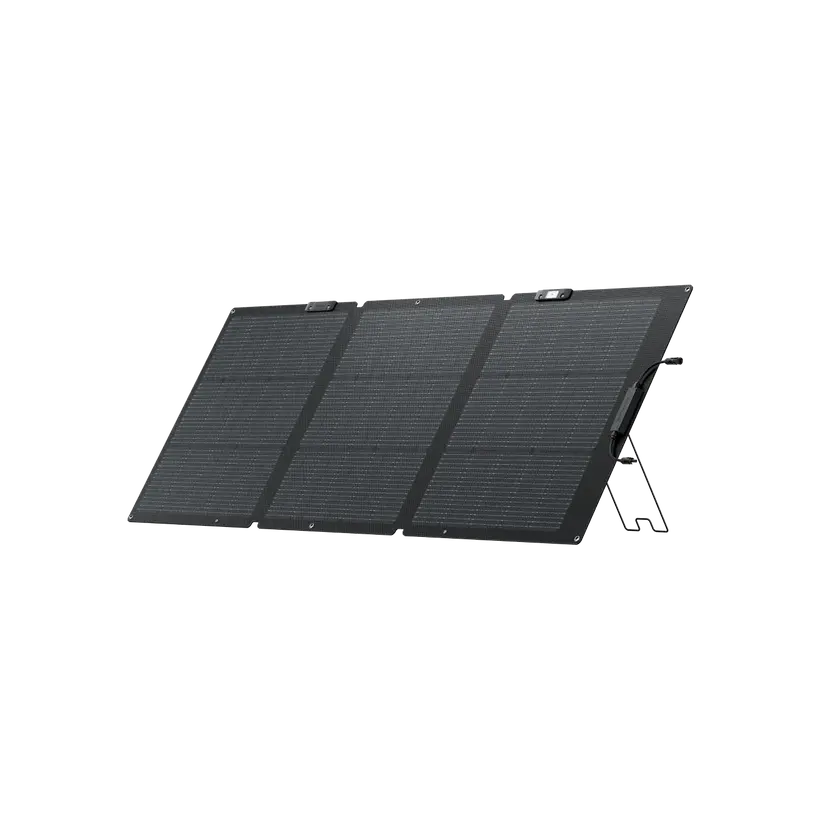

EcoFlow NextGen 160W Portable Solar Panel — 25% TOPCon Efficiency with Adjustable Angle Bracket
The EcoFlow NextGen 160W Solar Panel brings N-Type TOPCon solar technology to the high-output portable panel segment, hitting 25% conversion efficiency with an integrated 30–60° adjustable angle bracket and solar angle guide to maximize energy capture. It's IP68-rated, foldable, and includes a protective bag and XT60i charging cable.
What's in the Box
- EcoFlow NextGen 160W Portable Solar Panel
- XT60i Charging Cable
- Protective Bag
- Quick Start Guide, Safety Instructions, Warranty Card
Key Features
- 25% N-Type TOPCon Efficiency — Higher efficiency than P-Type PERC panels; lighter than the original EcoFlow 160W panel at 5.6 kg vs 5.6–9.5 kg for comparable PERC panels

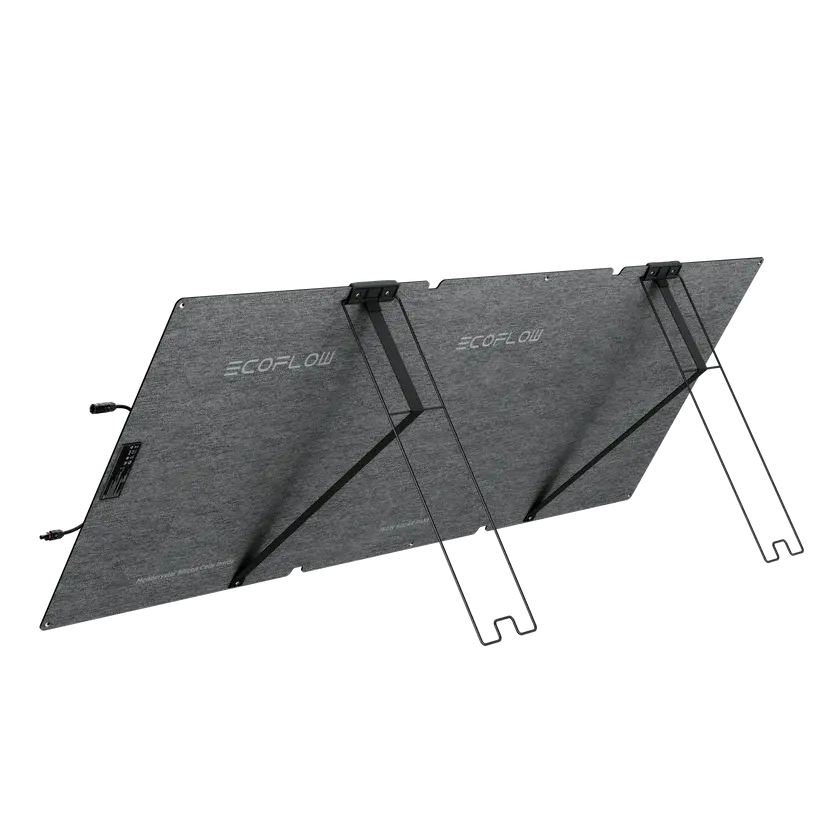

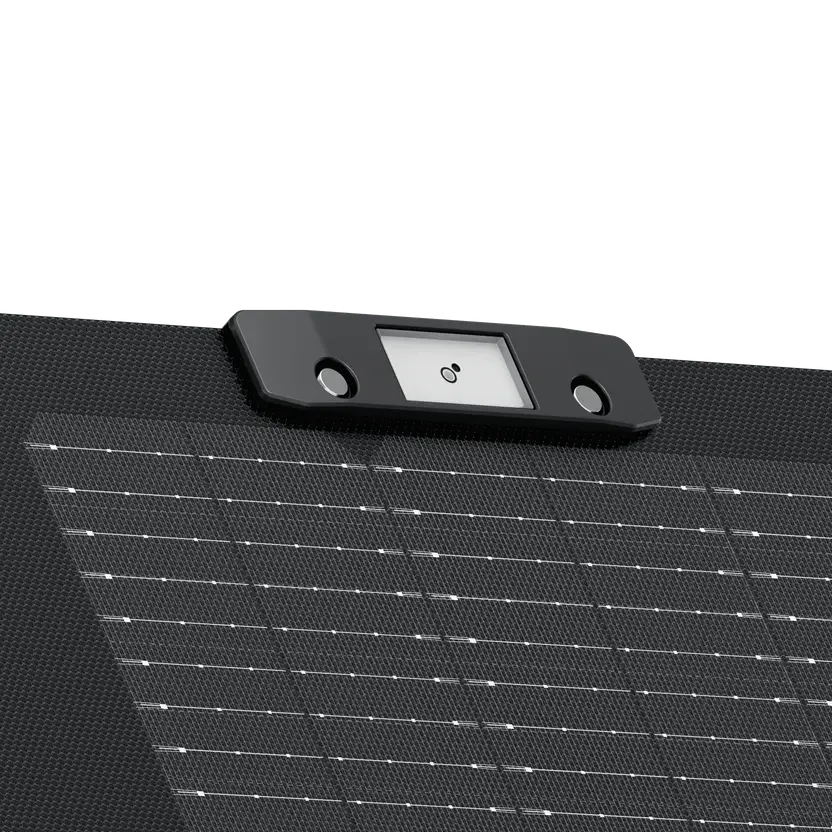

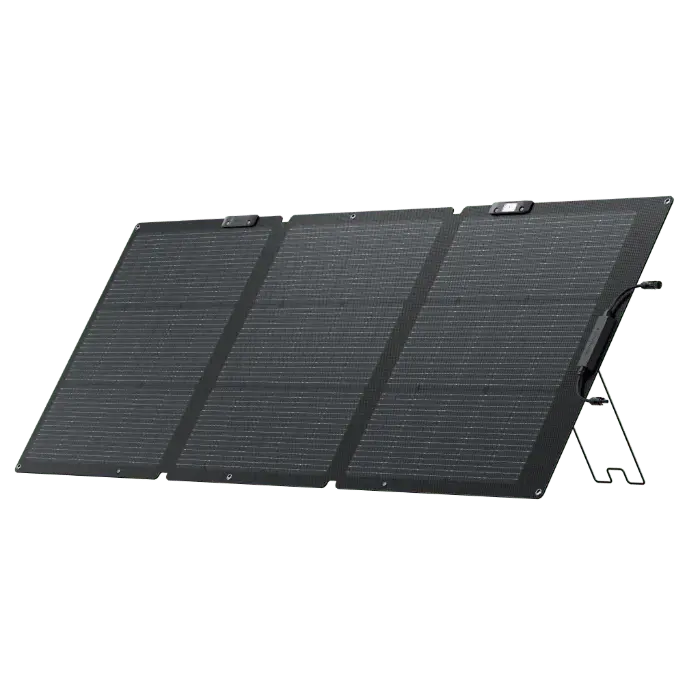

- 30–60° Adjustable Angle Bracket — Integrated adjustable stand with a built-in solar angle guide that keeps sunlight hitting the panel surface at a true 90° for maximum energy output
- IP68 Waterproof & Dustproof — ETFE coating and rugged construction; maintains high performance in rainfall and extreme weather conditions

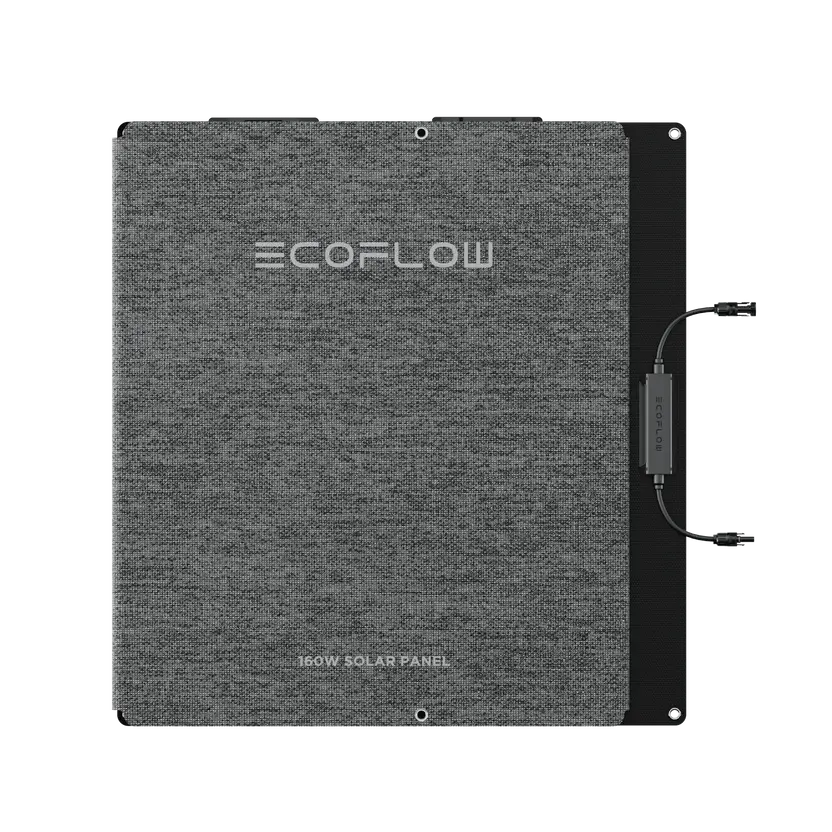

- Compact Folding Design — Folds to 600×572×32mm with a protective bag included; easy to store in vans, RVs, and closets
- XT60i Connector — Compatible with all EcoFlow power stations that accept XT60i solar input; cable included in the box
- 12-Month Warranty — Next-generation solar technology engineered for hikers, campers, RV users, and off-grid setups
Specifications
| Specification | Detail |
|---|---|
| Rated Power | 160W (±5W) |
| Cell Type | N-Type TOPCon monocrystalline silicon |
| Efficiency | 25% |
| Open Circuit Voltage (Voc) | 21.3V |
| Short Circuit Current (Isc) | 9.1A |
| Max Power Voltage (Vmp) | 18.6V |
| Max Power Current (Imp) | 8.6A |
| Connector Type | Photovoltaic connectors / XT60i (cable included) |
| Stand | 30–60° integrated adjustable bracket with solar angle guide |
| Net Weight | Approx. 5.6 kg / 12.3 lbs |
| Unfolded Dimensions | 600 × 1610 × 25 mm / 23.6 × 63.4 × 1.0 in |
| Folded Dimensions | 600 × 572 × 32 mm / 23.6 × 22.5 × 1.3 in |
| Waterproof / Dustproof | IP68 |
| Warranty | 12 Months (US) |
