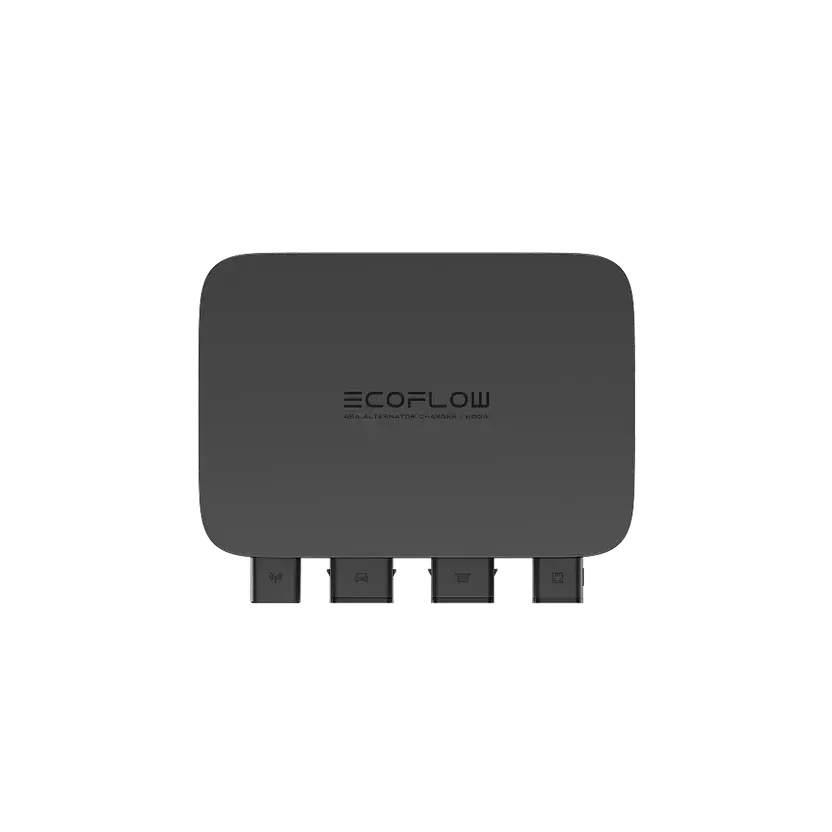

EcoFlow 500W Alternator Charger — Charge Your Power Station 5× Faster While You Drive
The EcoFlow 500W Alternator Charger captures surplus power from your vehicle's alternator and feeds it directly into your EcoFlow power station — charging 1kWh in as fast as 2.1 hours while you drive, 5× faster than a cigarette lighter. A 3-in-1 charger, battery maintainer, and jump starter, it's compatible with all EcoFlow and most third-party portable power stations.
⚠ Reverse Charging & Battery Maintenance Require XT150 Cable (Sold Separately). The 500W Alternator Charger ships with an XT60 cable. Reverse charging and battery maintenance functions are only available with the XT150 cable, and require an EcoFlow DELTA Series product.
⚠ DELTA Pro Requires Adapter. A DELTA Pro to Smart Generator Adapter (sold separately) is required to connect the 500W Alternator Charger to a DELTA Pro.
⚠ Verify Alternator Capacity. The 500W Alternator Charger's maximum power draw must be within your vehicle alternator's rated output. Check your vehicle or alternator manual before use.
What's in the Box
- EcoFlow 500W Alternator Charger
- XT60 Output Cable
- Input (Fuse) Cable
- User Manual
Key Features
- 500W Fast Charging While Driving — Charges 1kWh in as fast as 2.1 hours; 5× faster than a standard 100W cigarette lighter port; suitable for SUVs, pickups, RVs, and most hybrid and range-extended vehicles
- 3-in-1: Charger, Battery Maintainer & Jump Starter — Charges your power station from the alternator; maintains or jump-starts your vehicle's starter battery or RV house battery (requires XT150 cable + DELTA Series)
- Compatible with All EcoFlow + Most Third-Party Power Stations — Via XT60 connection; also compatible with third-party 24V batteries with proper app configuration
- GaN Technology — Safe, Efficient Charging — High thermal resistance GaN circuitry with full protection suite: reverse polarity, overcurrent, short circuit, overvoltage, and undervoltage protection
- Industry-First CarPlay & Android Auto Integration — Monitor power station charging status and remaining time via Apple CarPlay or Android Auto on your vehicle's infotainment screen
- 3-Step Easy Installation — No Drilling Required — Route wiring through the firewall; no vehicle modifications needed; recommended to have installation completed by a professional
Specifications
| Specification | Detail |
|---|---|
| Model | EF-MS-H02-1 |
| Charging Mode — Input | 12V/24V (11V–31V), 45A Max |
| Charging Mode — Output | 40V–60V, 500W Max; 24V, 360W Max |
| Battery Maintenance Mode — Input | 40V–60V, 3A Max |
| Battery Maintenance Mode — Output | 13.8V / 27.6V, 100W Max |
| Reverse Charging Mode — Input | 40V–60V, 13.2A Max |
| Reverse Charging Mode — Output | 13.8V / 27.6V, 500W Max |
| Fuse Rated Current | 125A |
| Net Weight | Approx. 1.6 kg / 3.53 lbs |
| Dimensions (W×D×H) | 9.5 × 7.6 × 1.4 in / 242 × 194 × 35 mm |
| Wi-Fi | 2412–2472 MHz, 18.22 dBm max |
| Bluetooth | 2402–2480 MHz, 7.89 dBm max |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Storage Temperature | -22°F to 158°F (-30°C to 70°C) |
| Operating / Storage Humidity | ≤95% |
| Protection | Reverse polarity, overcurrent, short circuit, overvoltage, undervoltage |
| Warranty | 2-Year |
