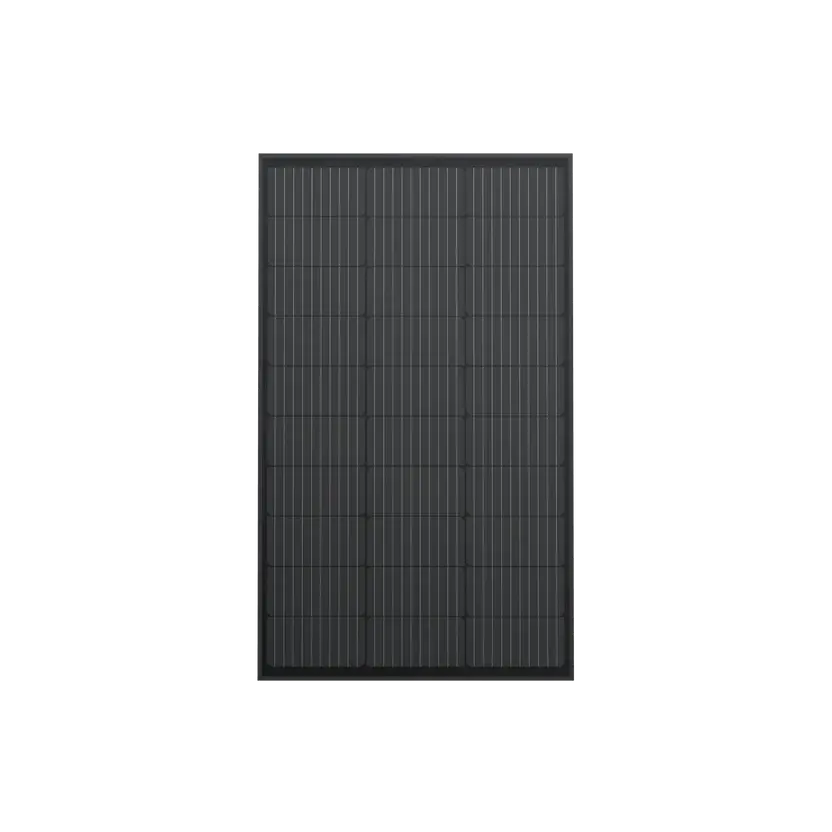

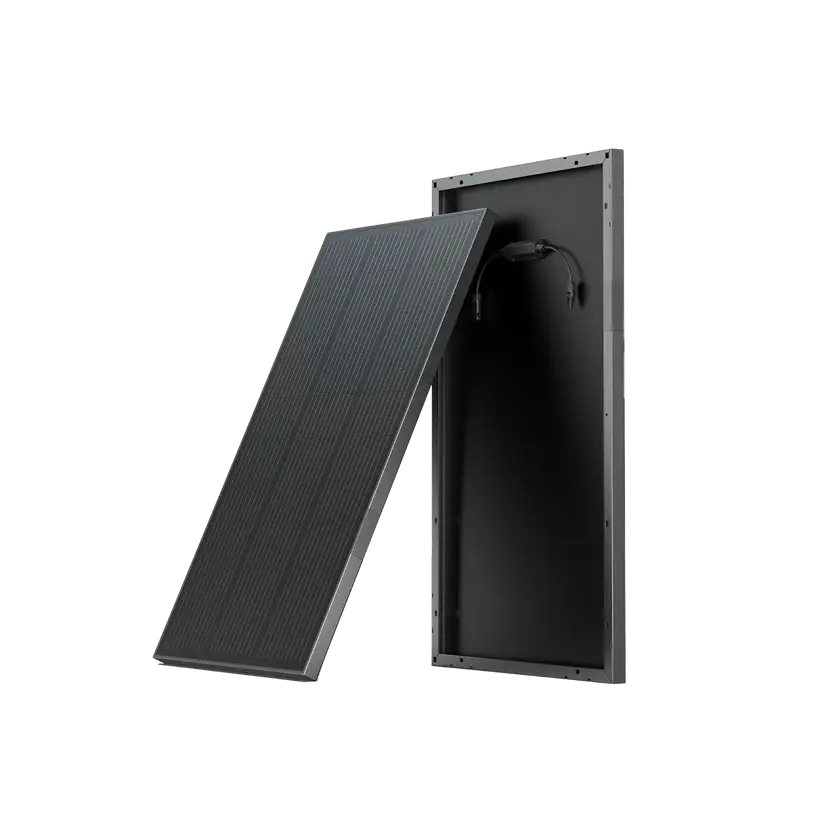

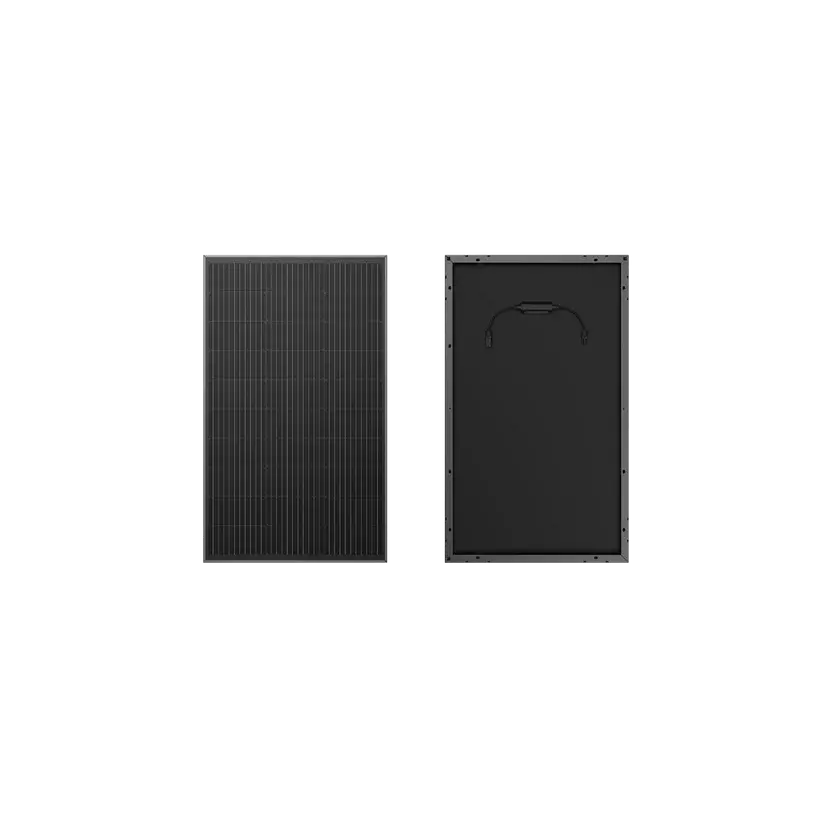

EcoFlow 100W Rigid Solar Panel — 23% Efficiency, IP68 Rated, Mountable All-Black Design
The EcoFlow 100W Rigid Solar Panel is a permanent-mount solar panel built from high-efficiency monocrystalline cells with tempered glass and an anti-corrosive aluminum frame, designed for van roofs, off-grid cabins, RVs, and Power Kits setups. This listing ships as a set of two panels.
What's in the Box
- EcoFlow 100W Rigid Solar Panel
- User Manual & Warranty Card
Key Features
-
23% Conversion Efficiency — High-efficiency monocrystalline cells coated with protective lamination and tempered glass for long-lasting performance; all-black design fits any rooftop style
-
Pre-Drilled Mounting Slots — Ready for permanent installation on van roofs, cabins, and RVs; pair with the 100W Rigid Solar Panel Mounting Feet (sold separately) for a secure, tool-free attachment
-
IP68 + Extreme Weather Resistance — Withstands 130 mph winds, up to 113 lb/sq ft snow load, dirt, and low-pressure water jets; designed for years of outdoor use
-
Universal Solar Connector — All-inclusive connector compatible with EcoFlow Power Kits, portable power stations, and existing 48V solar systems
-
Integrated MPPT Compatibility — Pairs with EcoFlow power stations and Power Kits for automatic solar optimization via the built-in MPPT algorithm
-
5-Year Warranty — Anti-corrosive aluminum frame; temperature coefficient rated for year-round performance in varied climates
Specifications
| Specification |
Detail |
| Rated Power |
100W (±5W) |
| Cell Type |
Monocrystalline silicon |
| Efficiency |
23% |
| Open Circuit Voltage (Voc) |
20.3V |
| Max Power Voltage (Vmp) |
17.1V |
| Short Circuit Current (Isc) |
6.3A |
| Max Power Current (Imp) |
5.9A |
| Temp Coefficient — Rated Power |
-0.39%/°C |
| Temp Coefficient — Voc |
-0.33%/°C |
| Temp Coefficient — Isc |
0.06%/°C |
| Max System Voltage |
600 VDC (UL) |
| Max Fuse Current |
15A |
| Waterproof / Dustproof |
IP68 (1m depth, up to 72 hours) |
| Wind Resistance |
Up to 130 mph (2400Pa wind load) |
| Snow Load |
Up to 113 lb/sq ft (5400Pa static load) |
| Net Weight (per panel) |
6.2 kg / 13.7 lbs |
| Dimensions (per panel) |
98 × 58.6 × 3 cm / 38.6 × 23.1 × 1.2 in |
| Warranty |
5-Year |
