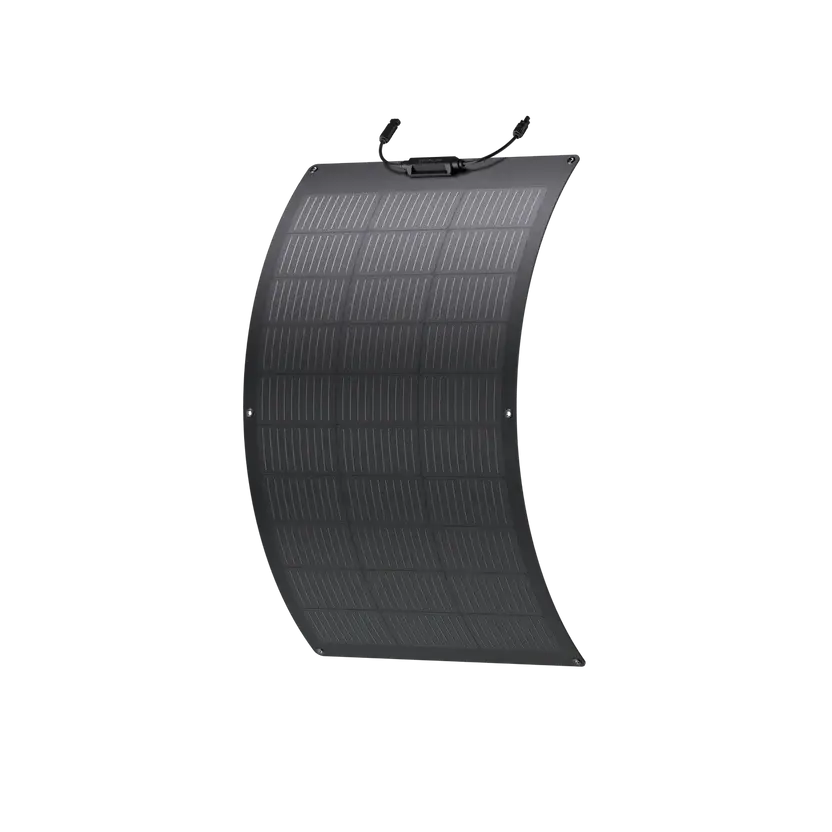

EcoFlow 100W Flexible Solar Panel — 258° Flex, 70% Lighter Than Rigid Panels, IP68 Rated
The EcoFlow 100W Flexible Solar Panel bends up to 258° to conform to curved van roofs, boat decks, and RV surfaces — weighing just 2.3 kg (5.1 lbs), 70% lighter than a comparable rigid panel. Each of the 182 monocrystalline silicon cells is protected by ETFE film and advanced glass fiber lamination for long-lasting outdoor performance.
What's in the Box
- EcoFlow 100W Flexible Solar Panel
- User Manual & Warranty Card
Key Features
-

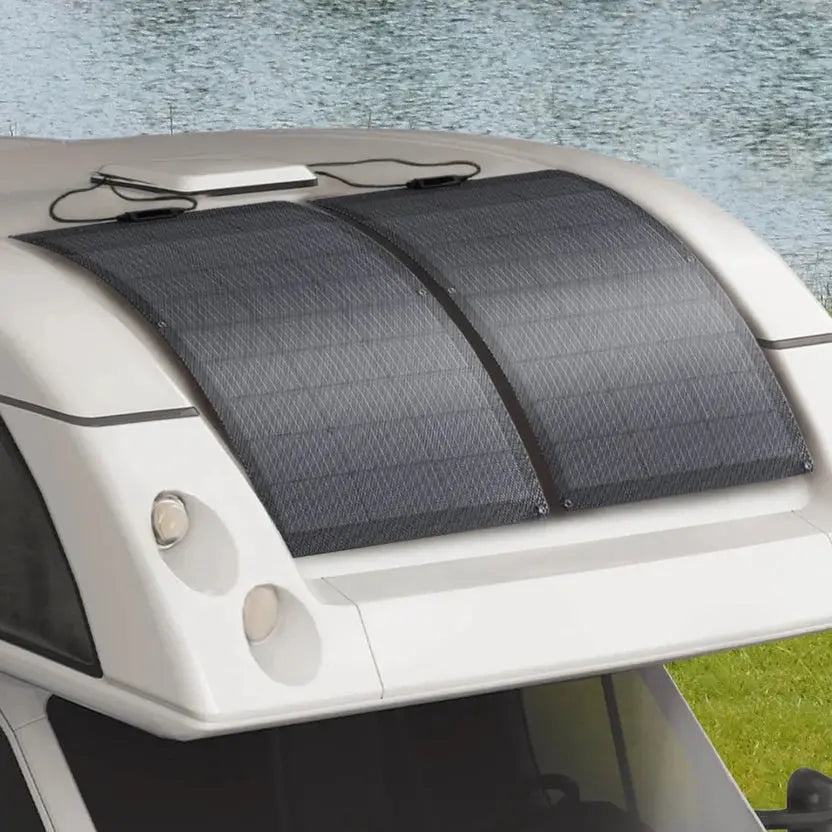

258° Flexibility — Bends in any direction to fit the curvature of van roofs, boat decks, RVs, and other curved surfaces without affecting solar input
-
70% Lighter Than Rigid Panels — At 2.3 kg (5.1 lbs), significantly easier to mount and reposition than traditional rigid panels of the same wattage
-
23% Conversion Efficiency — 182 monocrystalline silicon cells with integrated bypass diodes that prevent overheating and maintain cell performance in shaded environments
-
IP68 Waterproof + ETFE Film — Durable ETFE protective coating withstands humid, dry, and rain-heavy environments; rated for 1m submersion up to 72 hours
-
Pre-Cut Eyelets — Two Mounting Options — Hang using hooks through the eyelets, or adhere directly to a surface; includes 3.3ft solar cable for multi-panel setups
-
Universal Connector — Works with EcoFlow Power Kits, portable power stations, and existing 48V solar systems; MPPT algorithm optimizes solar input automatically
Specifications
| Specification |
Detail |
| Rated Power |
100W (±5W) |
| Cell Type |
Monocrystalline silicon (182 cells) |
| Efficiency |
23% |
| Open Circuit Voltage (Voc) |
20.3V |
| Max Power Voltage (Vmp) |
17.1V |
| Short Circuit Current (Isc) |
6.3A |
| Max Power Current (Imp) |
5.9A |
| Temp Coefficient — Rated Power |
-0.39%/°C |
| Temp Coefficient — Voc |
-0.33%/°C |
| Temp Coefficient — Isc |
0.06%/°C |
| Max System Voltage |
600 VDC (UL) |
| Max Fuse Current |
15A |
| Flexibility |
Up to 258° |
| Waterproof / Dustproof |
IP68 (1m depth, up to 72 hours) |
| Net Weight |
2.3 kg / 5.1 lbs |
| Dimensions |
1055 × 612 × 25 mm / 41.5 × 24.1 × 1.0 in |
| Solar Cable Included |
3.3 ft (1m) solar cable |
