High-Pressure Push Lock Connection for Nylon Misting Systems

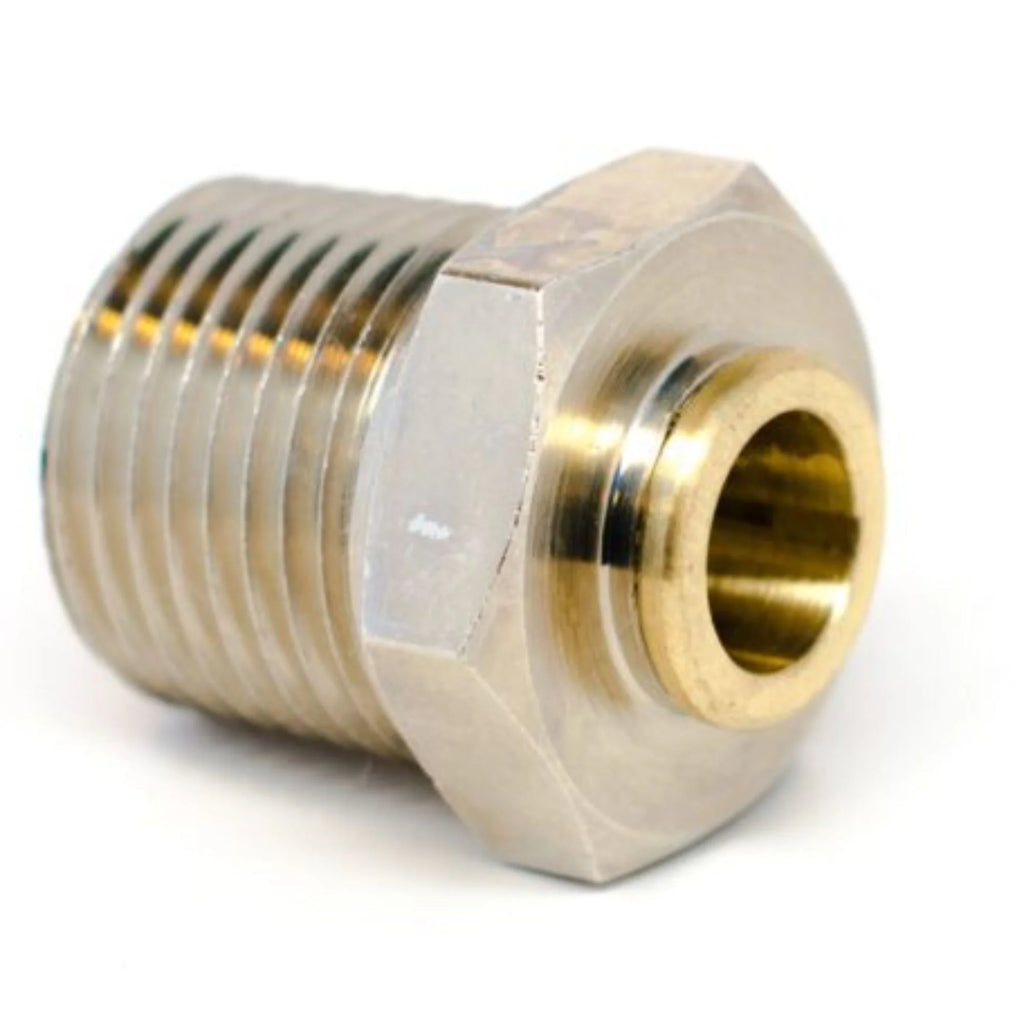

The High Pressure Push Lock Male Adapter from Aeromist delivers a fast, secure connection between nylon misting tubing and threaded system components. Make a clean straight cut in the nylon tubing, then push into the fitting until it locks. Available in multiple tube and thread size combinations to fit a wide range of high-pressure misting setups.
⚠ Nylon tubing only. Push Lock fittings are NOT compatible with stainless steel or copper tubing.
-
Push-to-lock installation — clean cut, push, done — no additional tools needed
-
Rated for high-pressure misting applications — built to hold under demanding conditions
-
Male NPT thread end — threads directly into female-threaded system components
-
Multiple tube and thread size options — select the combination that matches your layout
| Specification |
Detail |
| Tube Size |
1/4", 3/8", 1/2" |
| Thread Size |
1/8" NPT, 1/4" NPT, 3/8" NPT, 1/2" NPT |
| Tubing Compatibility |
Nylon only |
