Built for Leak-Free Performance in Every Size and Material You Need

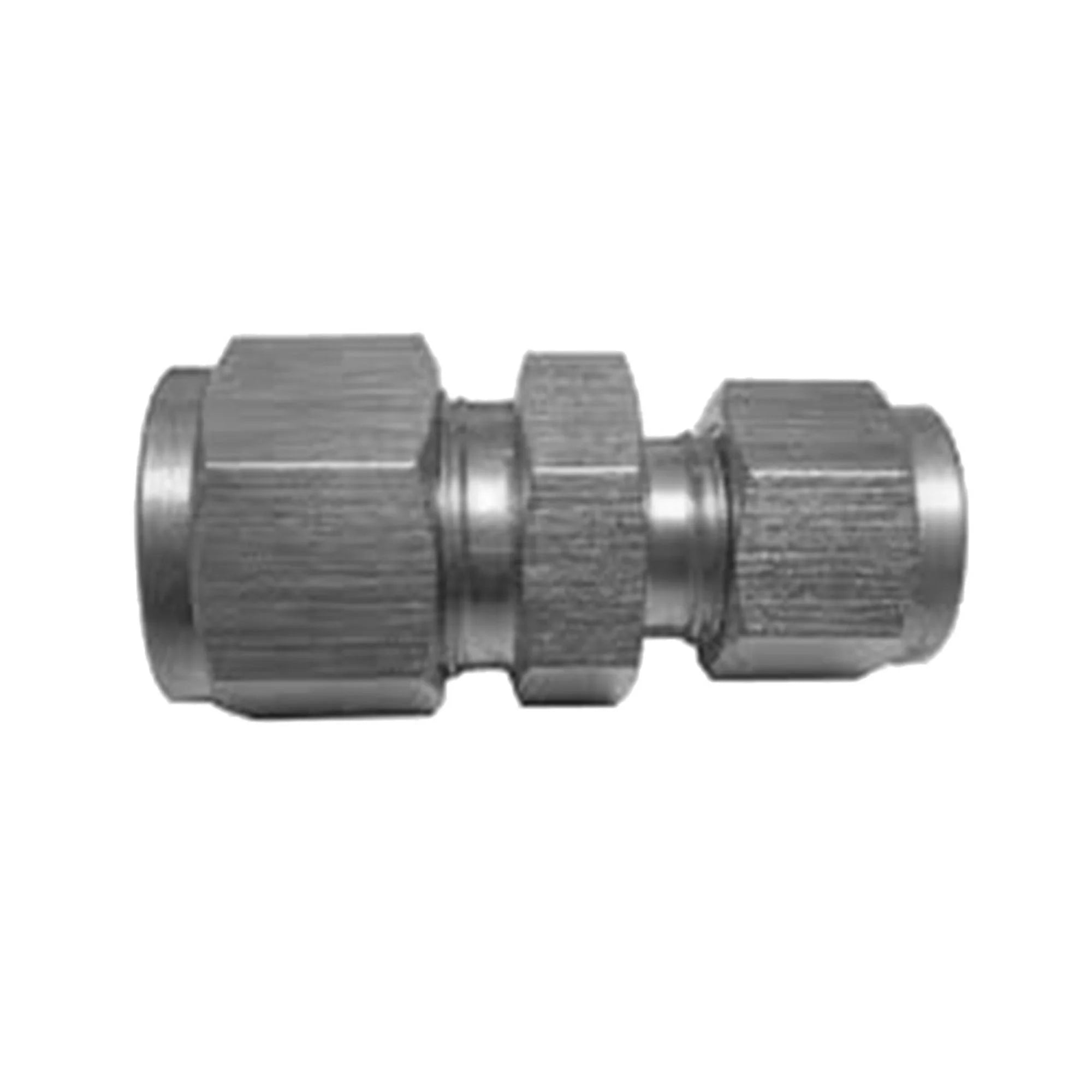

The Aeromist Heavy Duty Compression Reducing Union delivers a reliable, repeatable seal between two different tubing diameters in high-pressure misting systems. Available in both brass and stainless steel, and in two tube size combinations, this fitting uses a two-ferrule compression design that accounts for natural variations in tube OD — so connections hold tight through assembly, reassembly, and years of outdoor service. Compatible with stainless, copper, and nylon tubing.
-
Two-ferrule compression design — compensates for tube OD tolerances for a consistently secure fit
-
Leak-free seal on assembly and reassembly — holds tight through repeated service cycles
-
Low-torque assembly — tightens with minimal wrench effort
-
Compatible with stainless, copper, and nylon tubing — works across common misting line materials
-
Available in brass or stainless steel — select the material that suits your installation environment
| Specification |
Brass — 3/8" x 1/4" |
Stainless — 3/8" x 1/4" |
| SKU |
54016 |
55016 |
| Weight |
0.1 lbs |
0.1 lbs |

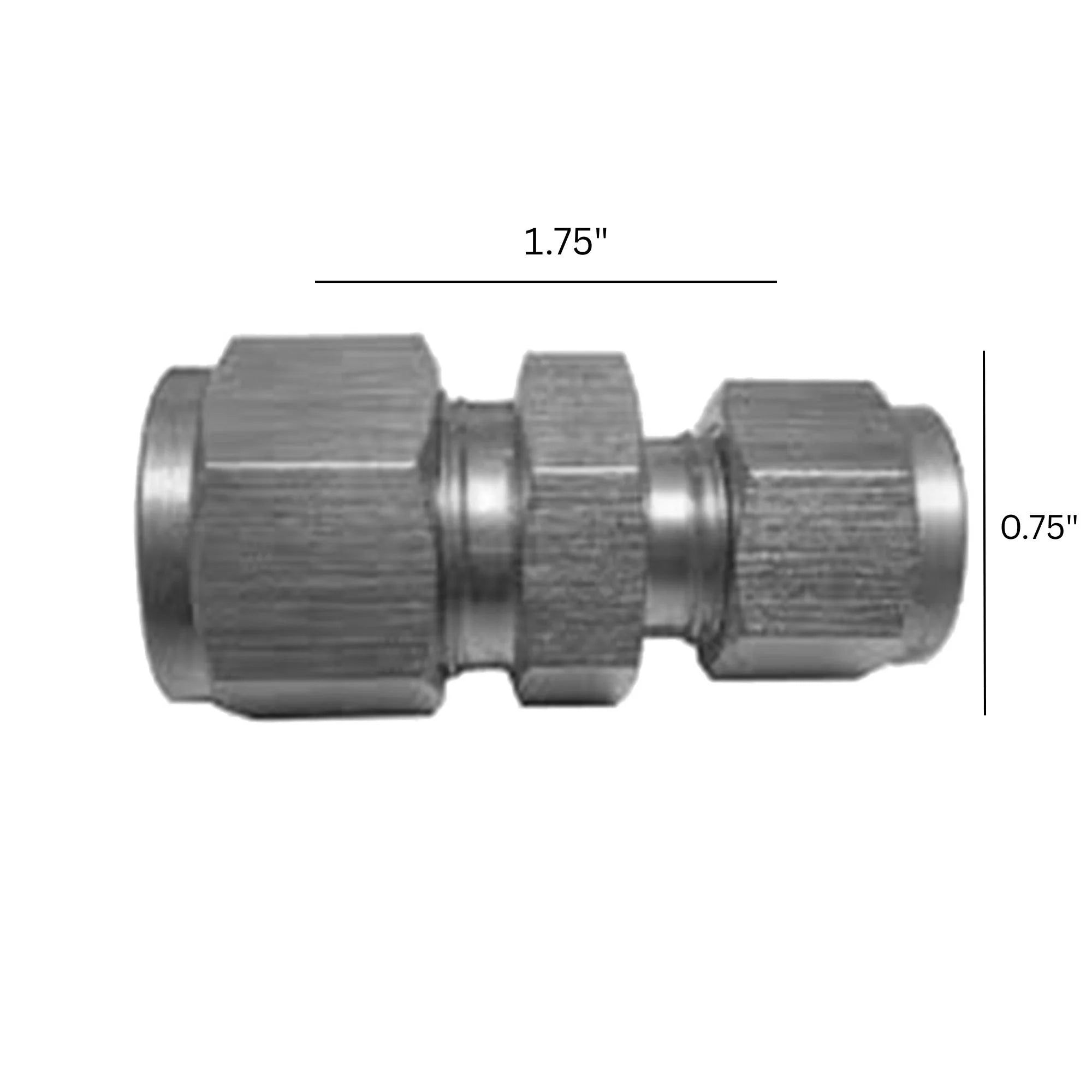

| Dimensions |
0.75 x 0.75 x 1.75 in |
0.75 x 0.75 x 1.75 in |
| Tubing Compatibility |
Stainless, Copper, Nylon |
Stainless, Copper, Nylon |
