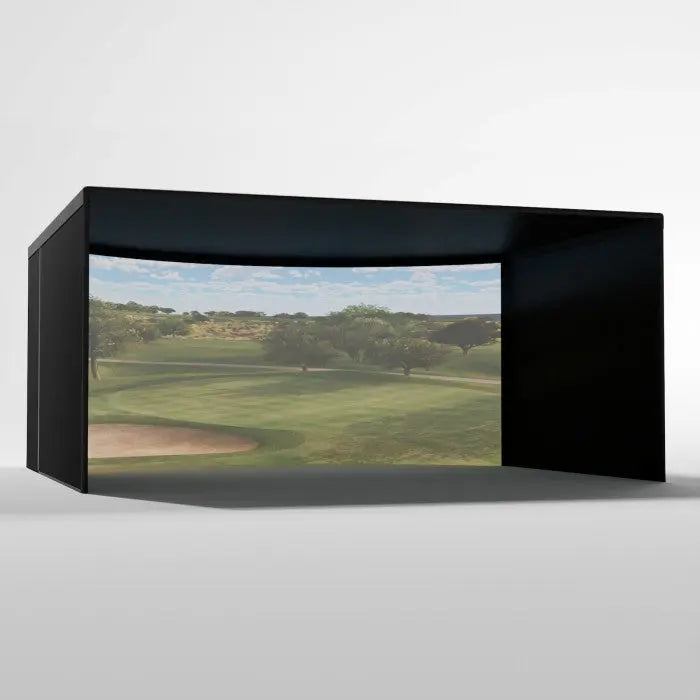

The most immersive DIY golf simulator on the market. The Carl's Place Curved Golf Simulator Enclosure Kit with High-Contrast Gray Golf Impact (9'H × 15'W × 15'D) is the first-ever DIY curved golf simulator kit, featuring an innovative curved impact screen that creates a panoramic, wide-field-of-view experience you can't get from any flat enclosure.
Designed for high-end residential and commercial use, this kit delivers a lifelike simulation environment — with premium materials, a single-projector setup, and optional custom sizing down to the inch.
What's Included
-
High-Contrast Gray Golf Impact — Specialized gray three-layer screen producing deeper blacks, richer colors, and enhanced contrast on the curved surface — ideal for spaces with ambient light.
-
BlackStop™ Enclosure Surround Fabric — premium knit fabric blocks ambient light and enhances immersion
-
Foam Insert Kit — pre-cut foam inserts to protect the frame and reduce rebound
-
Steel 2" Fittings — for 2" EMT framing pipes (sold separately)
-
Ball Bungees and Zip Ties — to tension and mount the curved screen
Pipe Framing Kit is NOT included. Add the Pipe Framing Kit or source 2" EMT locally (true OD: 2.197" / 55.8mm).
Enclosure Specifications — 9'H × 15'W × 15'D
| Specification |
Detail |
| Enclosure Size (H × W × D) |
9'H × 15'W × 15'D |
| Depth Note |
15' depth — maximum rear space for full rear access, equipment staging, and flexible projector positioning. |
| Rear Backset Fitting |
Adds 9.5" to total depth — minimum 9.5" rear clearance required |
| Ceiling Clearance Recommended |
6–7 inches above enclosure height |
| Side Clearance Recommended |
2–3 inches each side |
| Minimum Recommended Room Width |
15'8" |
| Minimum Recommended Room Height |
9'8" |
| Frame Pipe Required |
2" EMT (true OD 2.197" / 55.8mm) — NOT 1" EMT or PVC |
| Projector Setup |
Single projector — optional image warping software recommended for full curved correction |
Key Features
-
First-ever DIY curved golf simulator kit — panoramic curved screen creates an unmatched wide field of view
-
Curved Impact Screen — enhances simulation depth and peripheral immersion vs. flat screens
-
Single Projector Setup — one projector is enough; optional image warping software for full correction
-
BlackStop™ Enclosure Fabric — blocks ambient light, deepens contrast
-
Foam Insert Kit Included — protects frame, reduces rebound and noise
-
DIY-Friendly Assembly — step-by-step instructions included
-
Custom Sizing Available — standard sizes or fully custom to the inch
- Recommended hitting distance: 10–12 feet from screen
