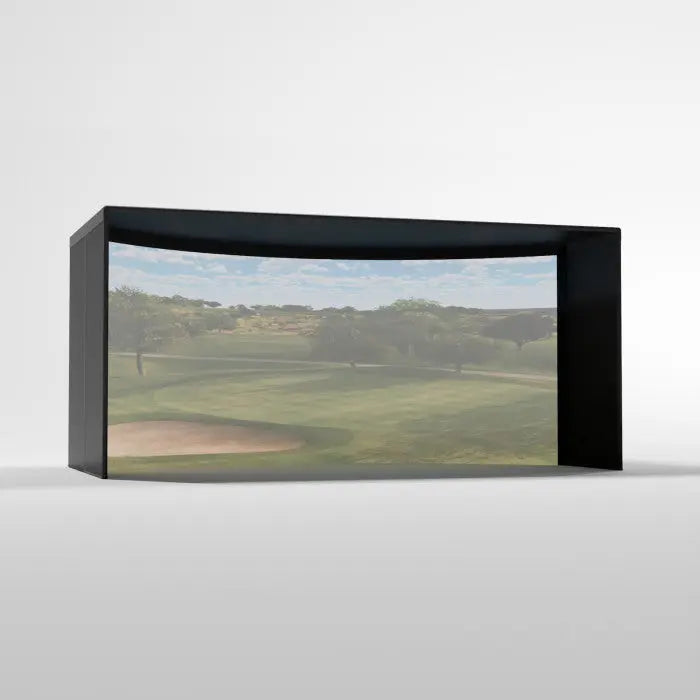

The most immersive DIY golf simulator on the market. The Carl's Place Curved Golf Simulator Enclosure Kit with High-Contrast Gray Golf Impact (9.5'H × 16'W × 8'D) is the first-ever DIY curved golf simulator kit, featuring an innovative curved impact screen that creates a panoramic, wide-field-of-view experience you can't get from any flat enclosure.
Designed for high-end residential and commercial use, this kit delivers a lifelike simulation environment — with premium materials, a single-projector setup, and optional custom sizing down to the inch.
What's Included
-
High-Contrast Gray Golf Impact — Specialized gray three-layer screen producing deeper blacks, richer colors, and enhanced contrast on the curved surface — ideal for spaces with ambient light.
-
BlackStop™ Enclosure Surround Fabric — premium knit fabric blocks ambient light and enhances immersion
-
Foam Insert Kit — pre-cut foam inserts to protect the frame and reduce rebound
-
Steel 2" Fittings — for 2" EMT framing pipes (sold separately)
-
Ball Bungees and Zip Ties — to tension and mount the curved screen
Pipe Framing Kit is NOT included. Add the Pipe Framing Kit or source 2" EMT locally (true OD: 2.197" / 55.8mm).
Enclosure Specifications — 9.5'H × 16'W × 8'D
| Specification |
Detail |
| Enclosure Size (H × W × D) |
9.5'H × 16'W × 8'D |
| Depth Note |
8' depth — standard starting depth for the Curved Kit, with 9.5" backset fitting behind screen. |
| Rear Backset Fitting |
Adds 9.5" to total depth — minimum 9.5" rear clearance required |
| Ceiling Clearance Recommended |
6–7 inches above enclosure height |
| Side Clearance Recommended |
2–3 inches each side |
| Minimum Recommended Room Width |
16'8" |
| Minimum Recommended Room Height |
10'2" |
| Frame Pipe Required |
2" EMT (true OD 2.197" / 55.8mm) — NOT 1" EMT or PVC |
| Projector Setup |
Single projector — optional image warping software recommended for full curved correction |
Key Features
-
First-ever DIY curved golf simulator kit — panoramic curved screen creates an unmatched wide field of view
-
Curved Impact Screen — enhances simulation depth and peripheral immersion vs. flat screens
-
Single Projector Setup — one projector is enough; optional image warping software for full correction
-
BlackStop™ Enclosure Fabric — blocks ambient light, deepens contrast
-
Foam Insert Kit Included — protects frame, reduces rebound and noise
-
DIY-Friendly Assembly — step-by-step instructions included
-
Custom Sizing Available — standard sizes or fully custom to the inch
- Recommended hitting distance: 10–12 feet from screen
Manual & Instructions
Innovative Curved Design for Enhanced Play Experience
The curved golf simulator enclosure kit from Carl's Place delivers an immersive golfing experience by featuring a sleek, curved frame. This design improves ball trajectory visibility and enhances realism by reducing shadows and glare that can affect tracking. Measuring 9.5 feet in height, 16 feet in width, and 8 feet in depth, it fits perfectly in standard indoor spaces while maximizing room for comfortable swings. The sturdy frame ensures durability and stability, making it an ideal choice for both home enthusiasts and professional training setups.
High-Contrast Gray Golf Impact Screen for Precision
Equipped with a high-contrast gray golf impact screen, this enclosure kit improves ball detection accuracy and visual clarity during practice. The gray color enhances image sharpness on your simulator, providing better contrast between the ball and screen for tracking technologies. This premium impact screen is designed to withstand repeated ball strikes without compromising quality, ensuring long-lasting performance for continuous use. Golfers can trust this feature to deliver consistent and precise feedback every time they practice.
Comprehensive Kit for Easy Installation and Versatility
This curved golf simulator enclosure kit includes everything needed for straightforward assembly, saving you time and effort. All components are engineered for quick setup, with clear instructions that make installation accessible to users of all skill levels. The enclosure’s design supports various simulator brands and technologies, offering flexibility regardless of your preferred system. Whether for casual play or serious training, this kit provides a versatile and dependable foundation to enhance your indoor golf experience.
