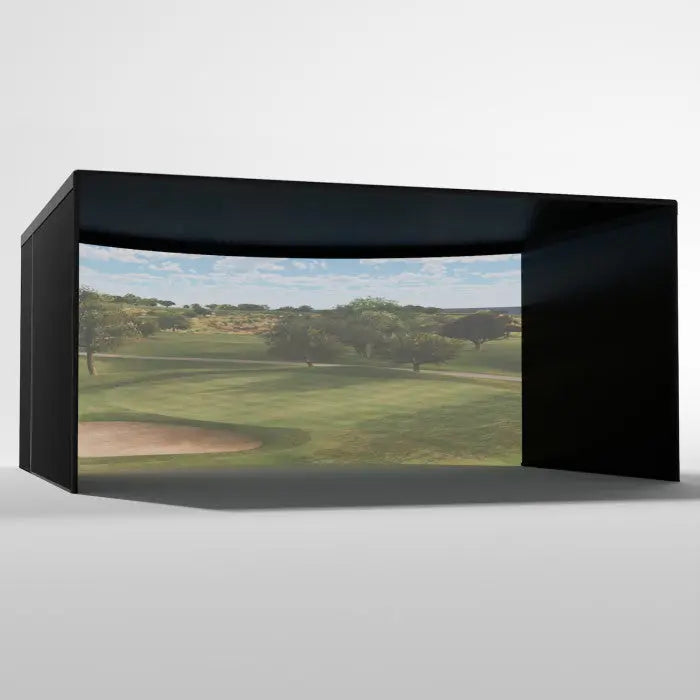

The most immersive DIY golf simulator on the market. The Carl's Place Curved Golf Simulator Enclosure Kit with High-Contrast Gray Golf Impact (9.5'H × 16'W × 15'D) is the first-ever DIY curved golf simulator kit, featuring an innovative curved impact screen that creates a panoramic, wide-field-of-view experience you can't get from any flat enclosure.
Designed for high-end residential and commercial use, this kit delivers a lifelike simulation environment — with premium materials, a single-projector setup, and optional custom sizing down to the inch.
What's Included
-
High-Contrast Gray Golf Impact — Specialized gray three-layer screen producing deeper blacks, richer colors, and enhanced contrast on the curved surface — ideal for spaces with ambient light.
-
BlackStop™ Enclosure Surround Fabric — premium knit fabric blocks ambient light and enhances immersion
-
Foam Insert Kit — pre-cut foam inserts to protect the frame and reduce rebound
-
Steel 2" Fittings — for 2" EMT framing pipes (sold separately)
-
Ball Bungees and Zip Ties — to tension and mount the curved screen
Pipe Framing Kit is NOT included. Add the Pipe Framing Kit or source 2" EMT locally (true OD: 2.197" / 55.8mm).
Enclosure Specifications — 9.5'H × 16'W × 15'D
| Specification |
Detail |
| Enclosure Size (H × W × D) |
9.5'H × 16'W × 15'D |
| Depth Note |
15' depth — maximum rear space for full rear access, equipment staging, and flexible projector positioning. |
| Rear Backset Fitting |
Adds 9.5" to total depth — minimum 9.5" rear clearance required |
| Ceiling Clearance Recommended |
6–7 inches above enclosure height |
| Side Clearance Recommended |
2–3 inches each side |
| Minimum Recommended Room Width |
16'8" |
| Minimum Recommended Room Height |
10'2" |
| Frame Pipe Required |
2" EMT (true OD 2.197" / 55.8mm) — NOT 1" EMT or PVC |
| Projector Setup |
Single projector — optional image warping software recommended for full curved correction |
Key Features
-
First-ever DIY curved golf simulator kit — panoramic curved screen creates an unmatched wide field of view
-
Curved Impact Screen — enhances simulation depth and peripheral immersion vs. flat screens
-
Single Projector Setup — one projector is enough; optional image warping software for full correction
-
BlackStop™ Enclosure Fabric — blocks ambient light, deepens contrast
-
Foam Insert Kit Included — protects frame, reduces rebound and noise
-
DIY-Friendly Assembly — step-by-step instructions included
-
Custom Sizing Available — standard sizes or fully custom to the inch
- Recommended hitting distance: 10–12 feet from screen
Manual & Instructions
Advanced Design for an Immersive Golfing Experience
The Carl's Place Curved Golf Simulator Enclosure Kit is meticulously crafted to enhance any indoor golf setup. This commercial golf simulator enclosure offers a generous playing area measuring 9.5 feet high, 16 feet wide, and 15 feet deep, providing ample space for realistic swings and ball flight. The curved design improves ball deflection and safety, making it perfect for commercial use. Its high-contrast gray golf impact screen delivers sharp, vivid visuals, intensifying your virtual golf experience with crisp imagery and enhanced ball tracking accuracy, ensuring every shot is captured perfectly.
Durability and Safety Built for Commercial Use
Designed specifically for commercial golf simulator setups, this enclosure kit features heavy-duty materials capable of withstanding repeated impacts from golf balls with minimal wear. The high-contrast gray impact screen is engineered to resist tearing and maintain clarity over time. The foam padding and durable frame provide excellent shock absorption, making it safe for players of all skill levels. This enclosure's robust construction ensures long-lasting performance in high-traffic environments such as golf clubs, training centers, and entertainment venues.
Easy Installation and Flexible Compatibility
The commercial golf simulator enclosure from Carl's Place offers straightforward assembly with modular components that fit together seamlessly. This makes installation quick and hassle-free, allowing businesses to set up or relocate the simulator swiftly. Moreover, the kit is highly compatible with popular golf simulation systems and technologies, providing versatility that suits a wide range of setups. Whether upgrading existing equipment or building a new golf simulation space, this kit delivers professional quality and adaptability.
