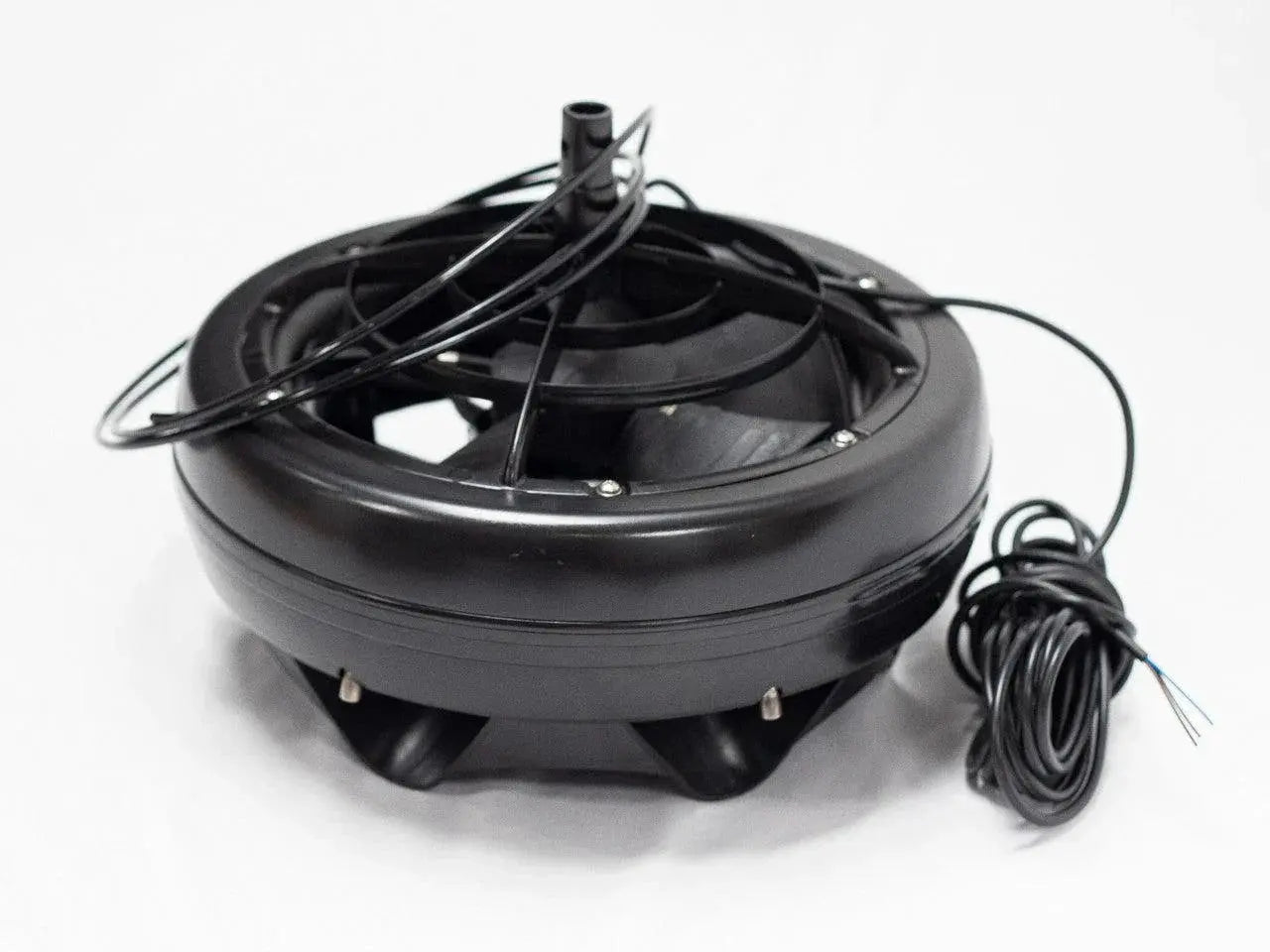

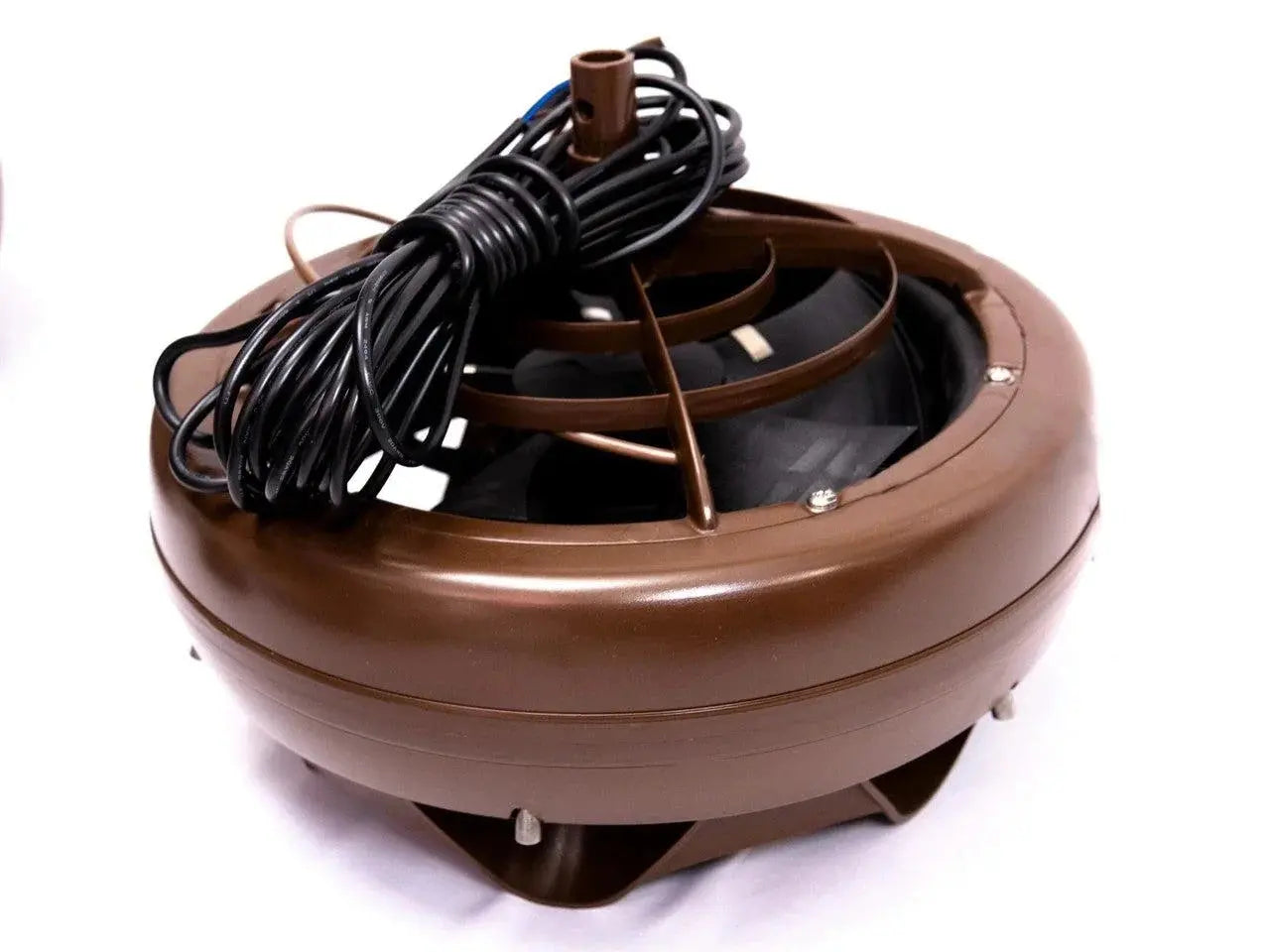

MistAmerica - MiniCool 360 System

The Mist360 MiniCool™ is a compact ceiling misting fan designed for smaller patios with standard 8 ft ceiling heights — delivering economical, effective cooling to spaces under 100 sq. ft.

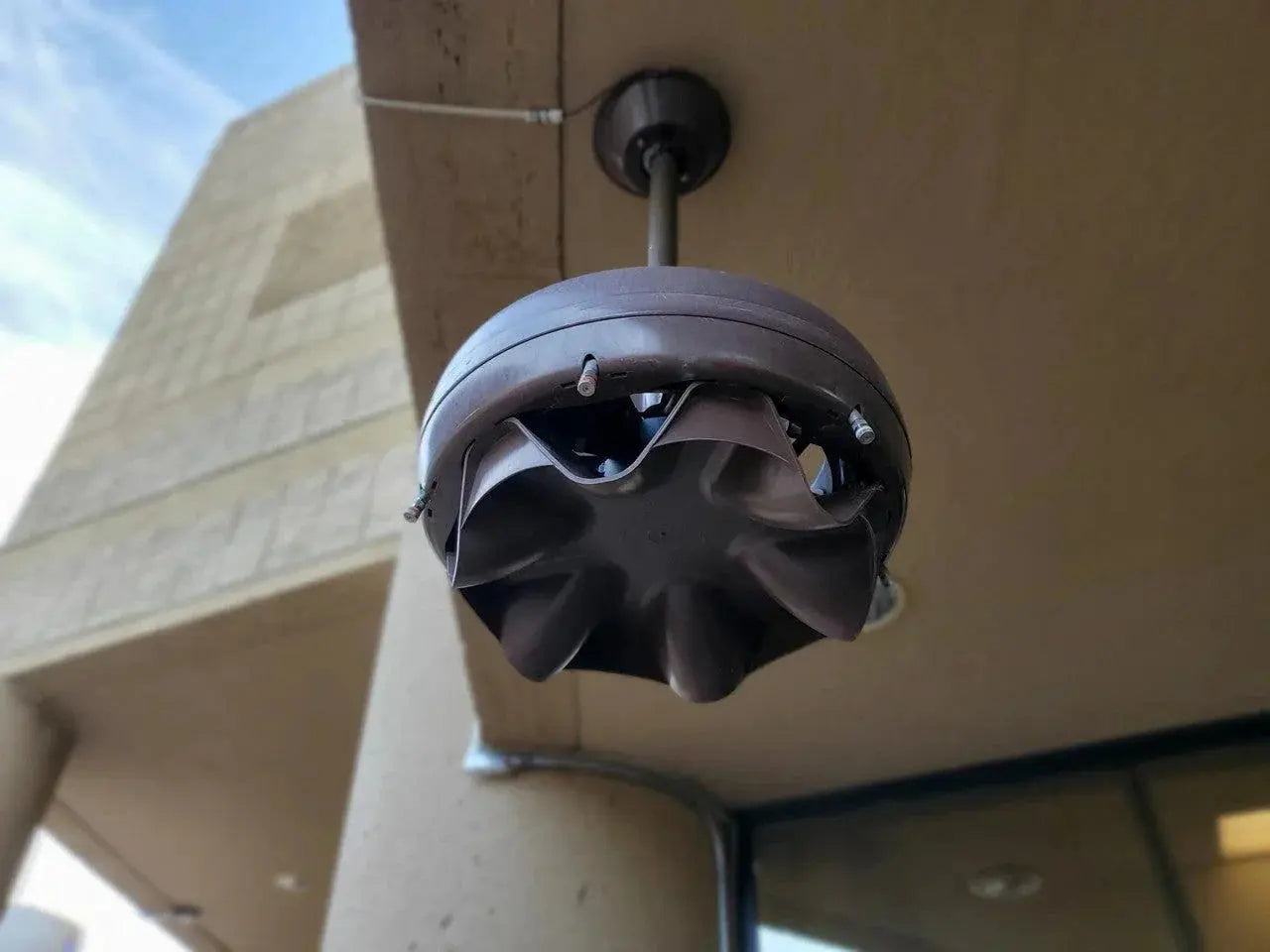

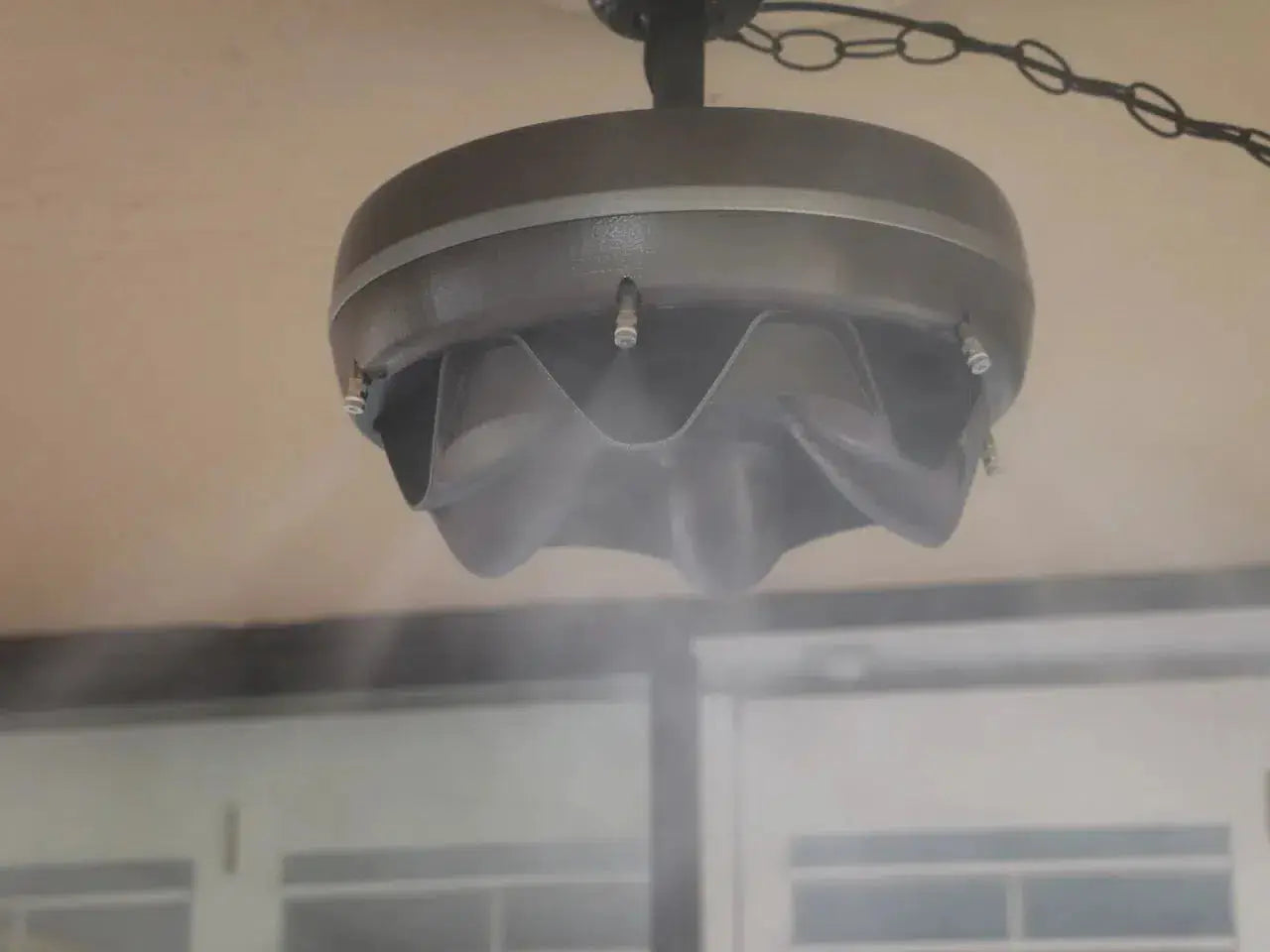

The smallest unit in the Mist360 lineup, the MiniCool is specifically designed to hang from a standard 8 ft patio ceiling and cool an 8–10 ft diameter space. The patented design features 6 openings to propel airflow outward with a ruby-orifice nozzle centered over each opening. Comes standard with a medium-pressure 600 PSI pump assembly; a high-pressure 1,000 PSI pump upgrade is available for use with larger flow nozzles in more arid, high-desert climates. Can also be run without mist during cooler months as a standard ceiling fan. Patented product. Designed and built in the USA.

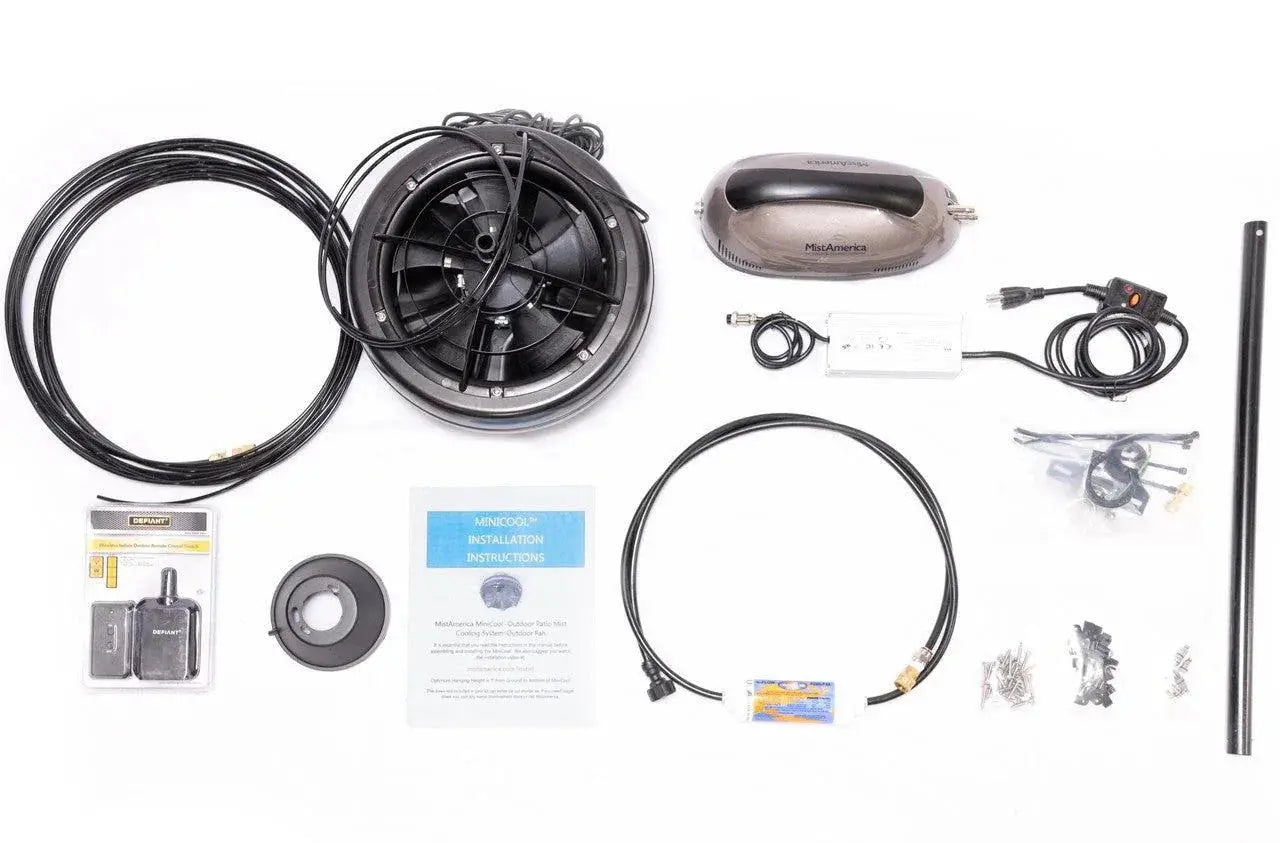

What's Included

• 1 Mist360 MiniCool fan
• 1 medium-pressure (600 PSI) pump assembly — high-pressure (1000 PSI) pump upgrade available (+$500)
• Low-pressure water hose with in-line water filter (sediment filter with calcium inhibitor)
• 50 feet of high-pressure feed line (nylon flex, or upgrade to stainless steel) with attachment clips
• 6 ruby-orifice misting nozzles, sized for your geographic location
• 1 3/16" compression union
• 1 1/4" to 3/16" compression fitting adapter
• 2 aluminum down rods, sized 4" and 24"

• 1 ceiling mounting kit

• 1 installation manual
