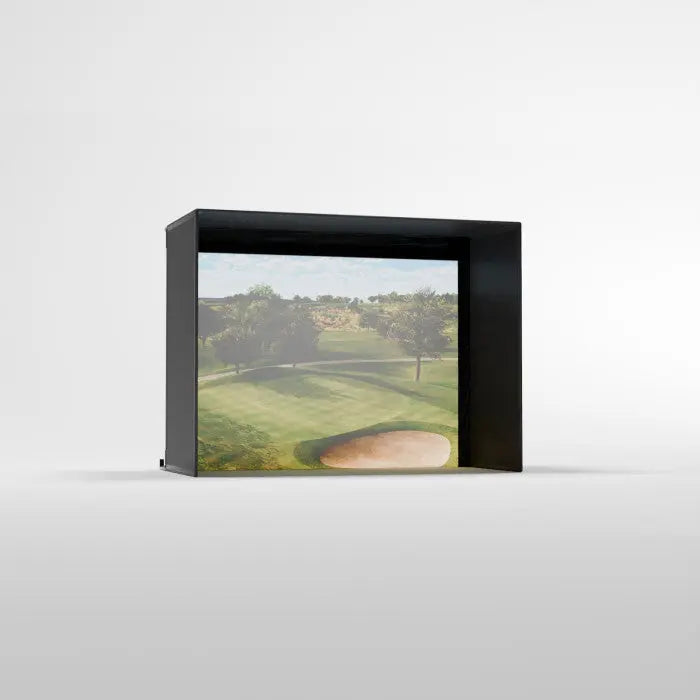

Professional-grade indoor golf. Built for luxury homes and commercial installations. The Carl's Place Pro Golf Simulator Enclosure Kit with HighContrast Gray Golf Impact (9'H × 12'W × 5'D) delivers an uninterrupted turf-to-screen experience, wrapped in the latest-generation BlackStop™ enclosure engineered to maximize immersion and minimize setup time.
What's Included
- High-Contrast Gray Golf Impact — Specialized gray three-layer screen producing deeper blacks, crisper colors, and enhanced contrast — engineered to perform in rooms where ambient light cannot be fully eliminated.
- BlackStop™ One-Piece Knit Enclosure — integrated ceiling and sidewalls block ambient light and enhance contrast
- Foam Inserts — pre-cut inserts behind flaps to protect the frame from ricochets and reduce bounce-back
- Detachable Flaps with Hook-and-Loop Fasteners — reinforced wide strips, professional finish
- Steel Corner Fittings — for 2" EMT framing pipes (sold separately)
- Bottom Cable with Springs & Cable Receivers — tensioned for reduced ball rebound
- Zip Ties & Hardware Bag with Literature
Pipe framing is NOT included. Add the Pipe Framing Kit or purchase 2" EMT locally (true OD: 2.197" / 55.8mm).
Enclosure Specifications — 9'H × 12'W × 5'D
| Specification | Detail |
|---|---|
| Size (H × W × D) | 9'H × 12'W × 5'D |
| Enclosure Depth Note | 5' depth — standard depth, frame footprint extends 9.5" behind screen. |
| Frame Footprint Behind Screen | 9.5" minimum rear clearance required |
| Ceiling Clearance Recommended | 6–7 inches above enclosure height |
| Side Clearance Recommended | 2–3 inches each side (subtract 4–6" from room width) |
| Minimum Room Width | 12'6" |
| Minimum Room Height | 9'8" |
| Frame Pipe Required | 2" EMT (true OD 2.197" / 55.8mm) — NOT 1" EMT or PVC |
| Assembly Time | ~2 hours with 2–3 people |
| Shipping Weight (without Pipe Kit) | 130–150 lbs (4–5 boxes) |
| Shipping Weight (with Pipe Kit) | Up to 585 lbs (8–13 boxes) |
Pro Enclosure Key Features
- BlackStop™ One-Piece Knit Enclosure — durable fabric with integrated ceiling and sidewalls darkens the hitting bay for superior contrast and an immersive experience
- Foam Inserts Included — pre-cut inserts protect the frame from ricochets and reduce noise
- Detachable Flaps with Reinforced Fasteners — wider hook-and-loop strips hold firmly under repeated impacts
- Reduced Bounceback System — three-layer screen, tensioned bottom cable, and releasable zip ties absorb shots effectively
- Versatile Crossbar System (Optional Add-On) — movable crossbar supports overhead launch monitors, projectors, and lighting
- Borderless bottom cable design — true floor-to-turf visual, no edge interruption
- Designed for luxury residential and high-end commercial installations
- Compatible with all major launch monitors and simulator software
Available Optional Accessories
- Pipe Framing Kit — pre-cut, labeled 2" EMT pipes matched to your enclosure size
- Safety Baffles — ceiling-mounted panels to deflect high-angle shots (match enclosure width)
- Back Cover Kit — blocks rear ambient light for optimal image quality and a polished look
- Back Cover Pipe Kit — pre-cut pipes for Back Cover Kit setup
- Movable Ceiling Crossbar — adjustable crossbar for mounting overhead equipment (match enclosure width)
