Azenco K-BANA Platform Edition 10×10 — Manual Louvered Aluminum Pergola with Built-In Floor

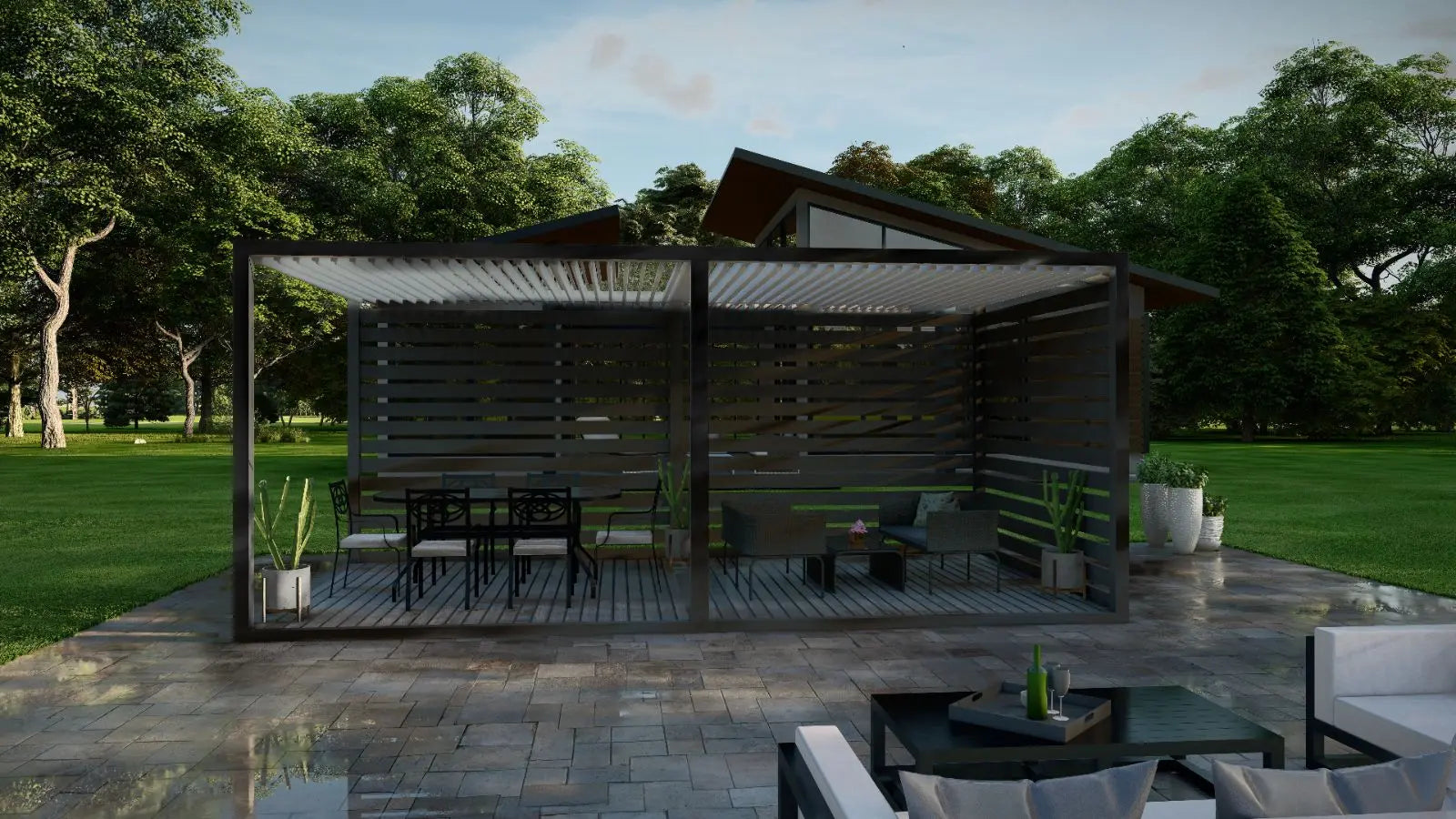

The K-BANA Platform Edition includes its own built-in floor, which makes it a complete standalone structure rather than a roof that needs a finished surface underneath. You can place it on lawn, gravel, or unfinished ground without first pouring a slab or building a deck — the platform is the deck. That's the practical difference from the Anchored Edition, and it's usually what decides between them.
A hand crank tilts the dual-zone aluminum louvers from wide open to fully closed, giving you control of sun, shade, and airflow across two sections independently. There is no wiring, no motor, and no electronics — nothing to power and no electrician needed. An integrated gutter system channels rainwater away through the frame, and the 6063-T6 extruded aluminum structure with AAMA 2604 powder coating is rated for winds up to 105 mph and snow loads up to 25 lbs per square foot. The K-BANA is modular, so units can be combined side by side or back to back if you expand the space later.
Key Features
- Built-in floor included — a complete standalone structure that can be sited almost anywhere
- No slab or deck required — place it on lawn, gravel, or unfinished ground
- Dual-zone louvered roof — control sunlight and ventilation independently across two sections
- Manual crank operation — no power, no wiring, no electronics to maintain
- Integrated drainage — gutter system channels rainwater away from the seating area
- 6063-T6 extruded aluminum with AAMA 2604 standard powder coating
- Rated to 105 mph wind and 25 lbs/sq ft snow load

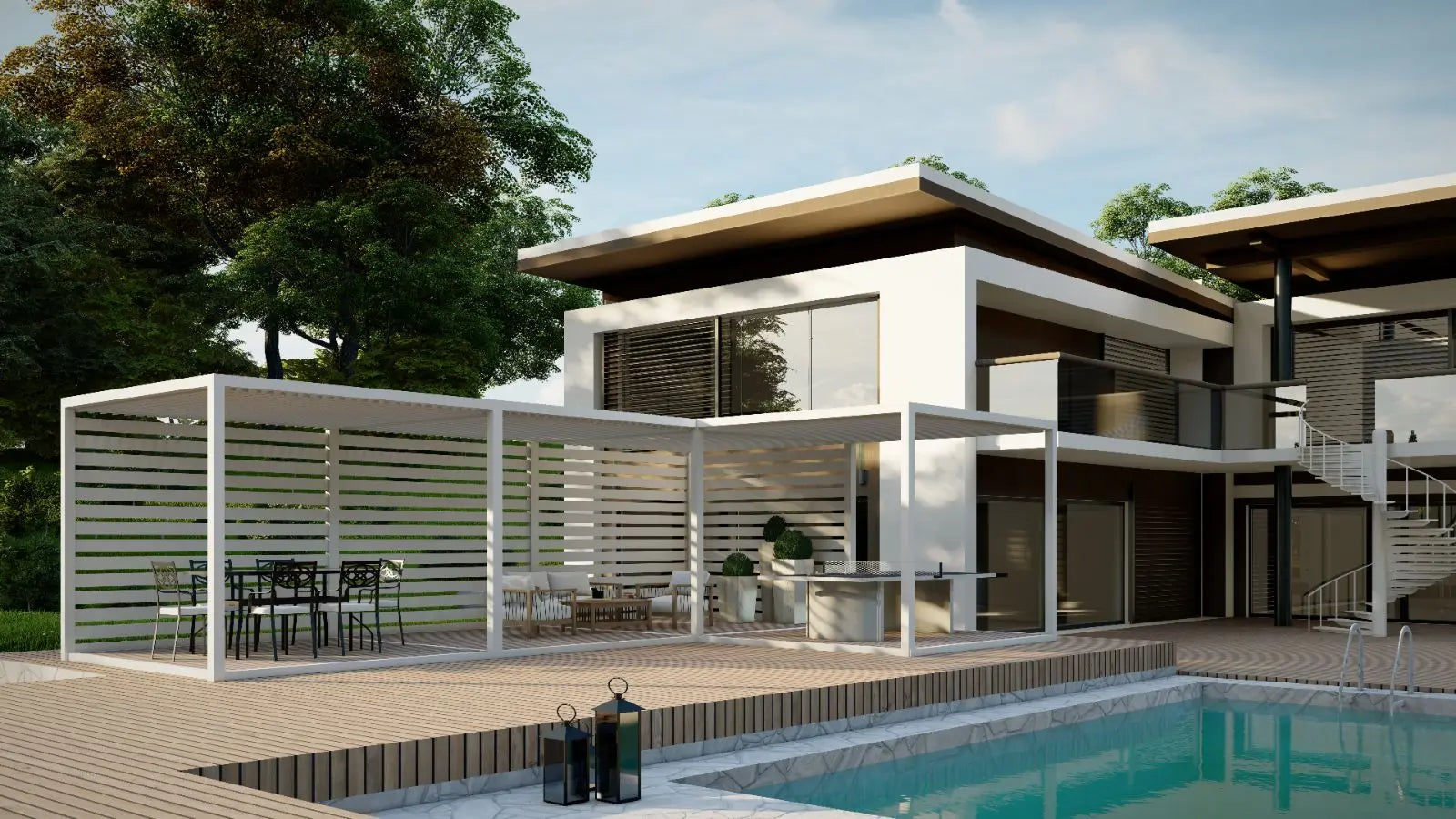

- Modular — combine multiple units side by side or back to back
- Optional side wall panels for privacy and enclosure when you want it
Included in the K-BANA Platform Edition
- Built-in floor structure (floor truss system)
- 4″ × 4″ platform beam
- 6063-T6 aluminum structure
- Standard powder coating, AAMA 2604
- 4″ × 4″ roof beams
- Manual aluminum louvered roof
- Handle with crank
Specifications
| Model | Azenco K-BANA, Platform Edition |
| Size | 10 × 10 ft |
| Structure Type | Standalone with built-in floor |
| Roof Type | Dual-zone louvered, manual crank adjustment |
| Frame Material | 6063-T6 extruded aluminum |
| Finish | Standard powder coating, AAMA 2604 |
| Wind Rating | Up to 105 mph |
| Snow Load | Up to 25 lbs per sq ft |
| Drainage | Integrated gutter system |
| Wall Color Options | Black, Gray |
| Power Required | None — fully manual |
| Integrated Lighting/Heating | Not included |
| Expandability | Modular — combine units side by side or back to back |
Documents
- K-BANA Assembly Manual (Combined)
- K-BANA Assembly Manual — With Floor Truss
- K-BANA Design Sheet — Manual Louvered Pergola
Is the K-BANA Platform Edition 10×10 right for you?
The Platform Edition includes a built-in floor, so it doesn't need an existing patio or deck underneath it. If the spot you have in mind is lawn, gravel, or bare ground, this is the version that works without groundwork first.
Buy the Platform Edition 10×10 if:
- You don't have a finished patio, deck, or slab to build on
- You want a complete standalone structure that can be sited anywhere in the yard
- You'd rather not pour concrete or build a deck first
Consider another model if:

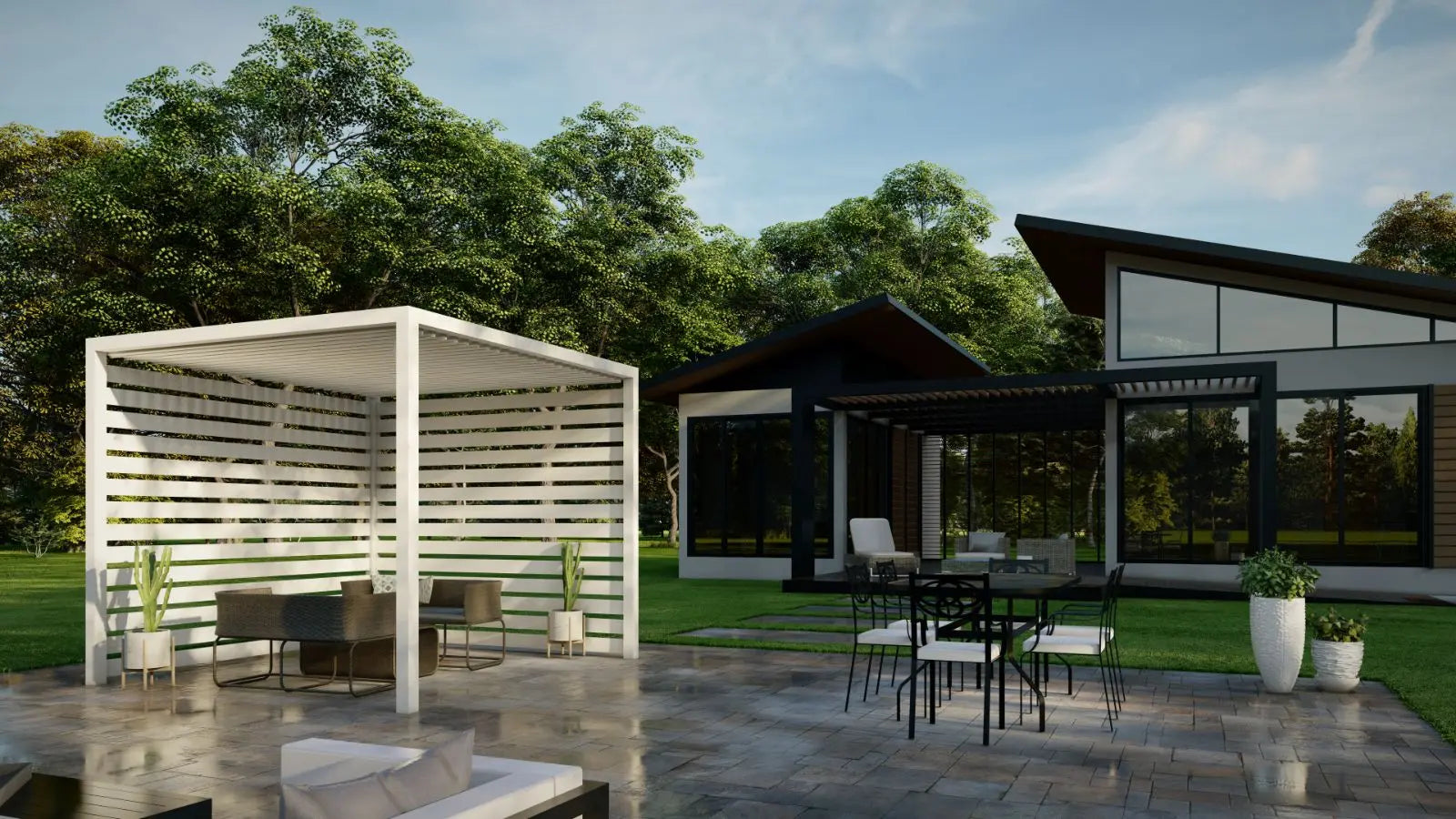

- You already have a finished surface — the Anchored Edition 10×10 mounts onto it directly for a flush, built-in look
- You need more covered area — see the Platform Edition 12×12
- You want motorized louvers and a higher weather rating — the Sundance Motorized Louvered Pergola is rated to 150 mph wind and 60 lbs/sq ft snow
Not sure whether you need the floor or not? Call a specialist at (786) 761-9155 — we'll look at your site and confirm before you order.
Frequently asked questions
What's the difference between the Platform and Anchored editions?
The Platform Edition includes its own built-in floor, so it's a complete standalone structure that can be placed on ground that isn't already finished. The Anchored Edition has no floor — it mounts onto a surface you already have, such as a patio, deck, or slab, for a flush built-in look. Choose Platform if your site isn't finished; choose Anchored if it is.
Do I need to pour a slab or build a deck first?
No — that's the point of this edition. The built-in floor means it can be sited on lawn, gravel, or unfinished ground without a slab or deck underneath. The ground should still be level and stable, so call us if you're unsure about your site.
Do the louvers need electricity?
No. The K-BANA uses a hand crank to tilt the louvers, with no motor, wiring, or electronics. That means no electrical work at installation and nothing electronic to service later.
What weather can it handle?
The structure is rated for winds up to 105 mph and snow loads up to 25 lbs per square foot. With the louvers closed, the integrated gutter system channels rainwater away to keep the area below dry.
Can I combine multiple units?
Yes — the K-BANA is modular, so units can be combined side by side or back to back to cover a larger area or create a custom layout. Call us before ordering if you're planning a multi-unit configuration so we can spec it correctly.
Does it include lighting, heating, or privacy walls?
Built-in lighting and heaters are not included. Side wall panels are available as an option and add enclosure and privacy without making the space permanently closed in. Wall colors are offered in black and gray.
How is it delivered?
Free and fully insured by freight carrier, with tracking and a scheduled delivery appointment. Plan a clear access route and a level placement area before delivery day. Our 24/7 US-based support can help you prepare.
