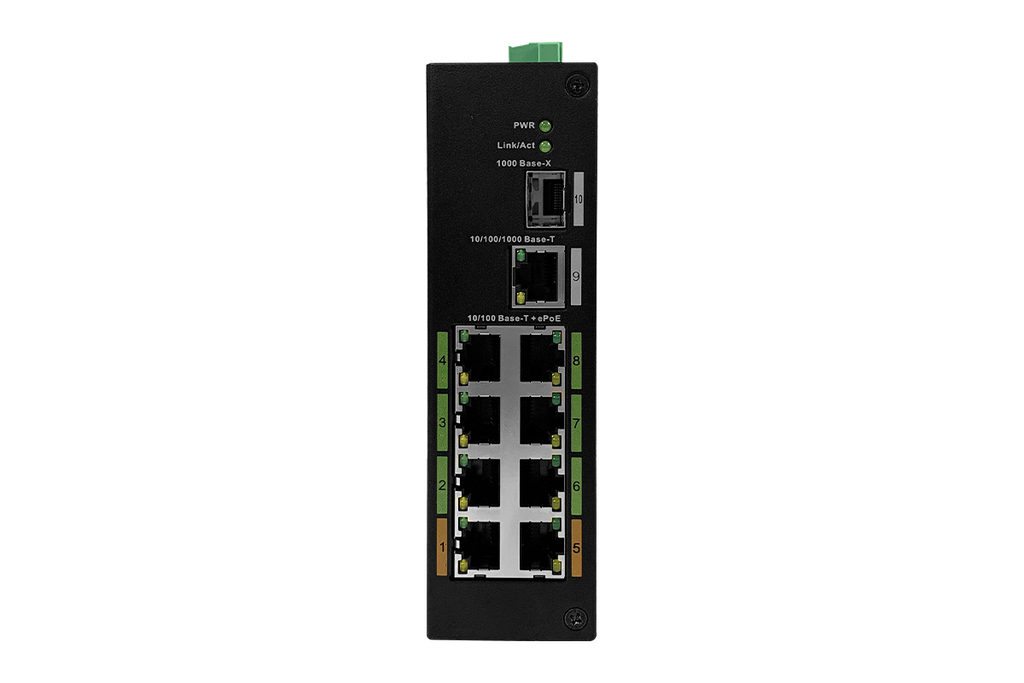

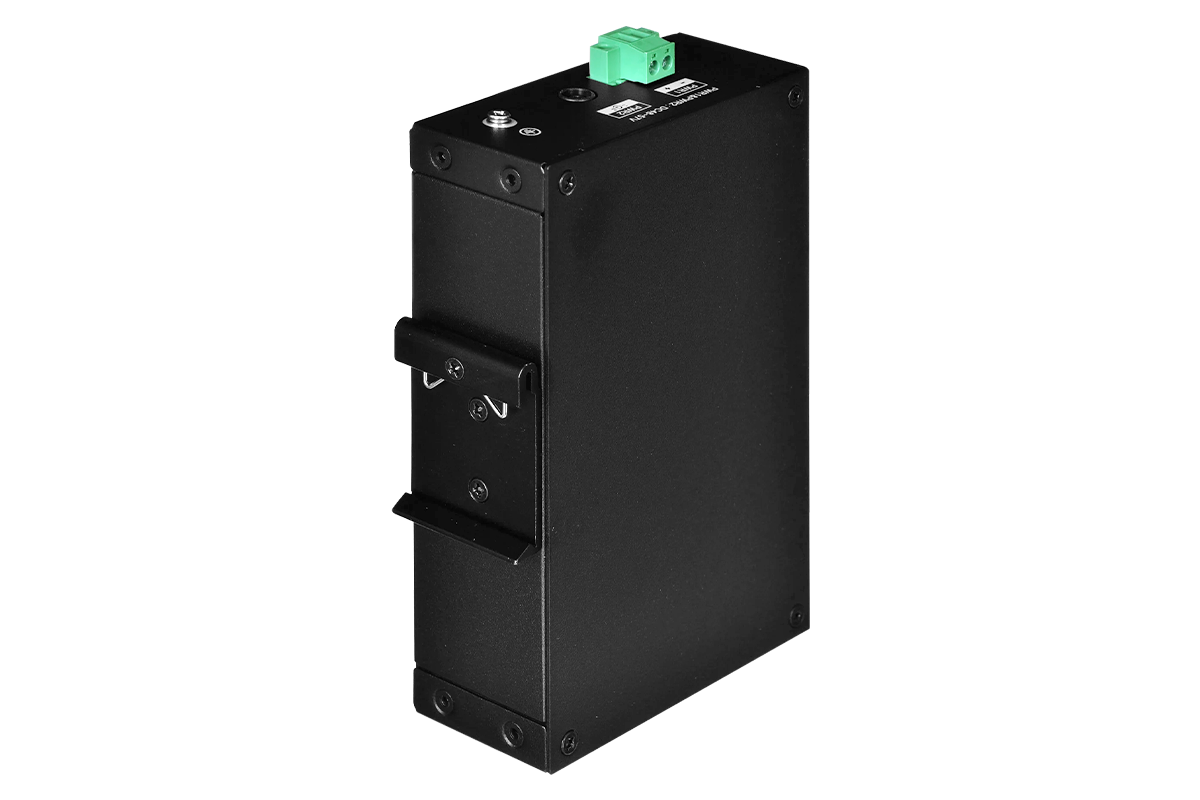

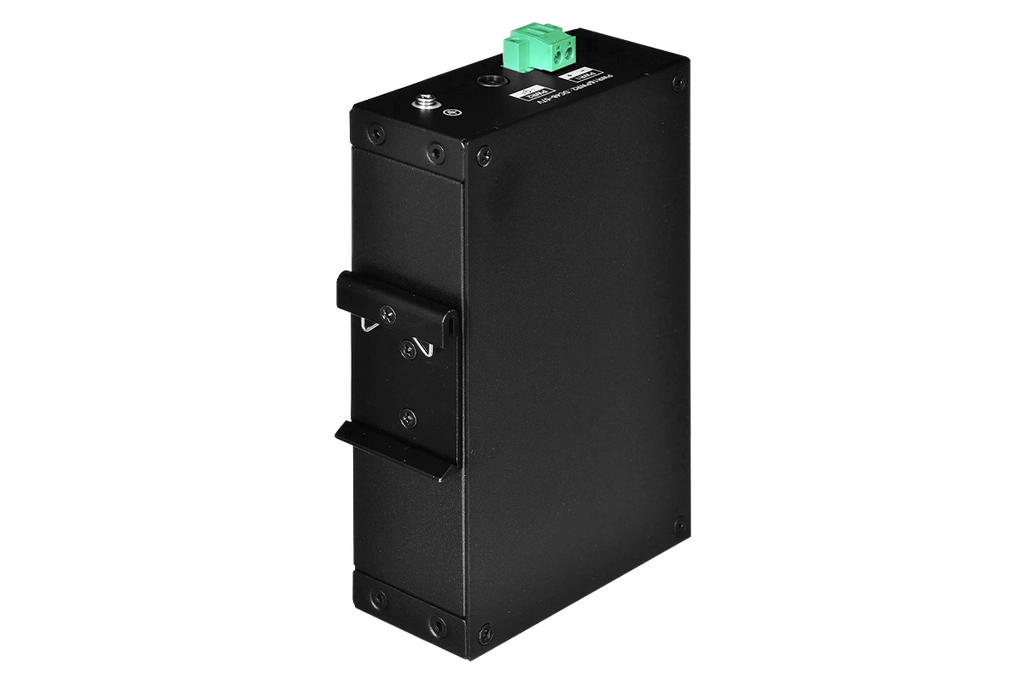

The Lorex AEX8 8-Port ePoE Switch is engineered to expand and simplify wired security camera installations, delivering both power and data to compatible PoE cameras over extended distances. Designed for professional surveillance systems, this managed network switch features eight PoE enabled ports that support standard PoE (IEEE802.3af), PoE+ (IEEE802.3at) and Hi-PoE power delivery — making it ideal for powering multiple high-performance cameras from a central recorder or network backbone.
With advanced ePoE technology, this switch can transmit power and data up to 800 meters, offering flexible camera placement far beyond traditional PoE limits and reducing the need for additional power sources close to every camera. It supports various transmission modes and plays a key role in building scalable wired security networks for large properties, commercial buildings, and multi-zone surveillance deployments.
Key Features
-
8 PoE-Enabled Ports: Supports multiple IP cameras or PoE devices for expanded surveillance coverage.
-
Extended ePoE Power Transmission: Delivers PoE up to 800 m at reduced data speeds, extending camera placement range.
-
High Power Budget: Total PoE output up to 120 W, with higher-power ports supporting up to 60 W for demanding devices.
-
Layer-Two Switch Architecture: Supports fast packet forwarding and MAC auto learning for efficient traffic handling.
-
Multi-Standard Support: Compatible with IEEE802.3af, IEEE802.3at and Hi-PoE PoE standards.
-
Industrial-Grade Reliability: Wide operating temperature range (-30 °C to 65 °C) for stable performance in varied environments.
-
Flexible Transmission Modes: Auto-adaptive support for standard Ethernet, E100 and long-range E10 modes.
What’s Included
- 1 × Lorex AEX8 8-Port ePoE Switch

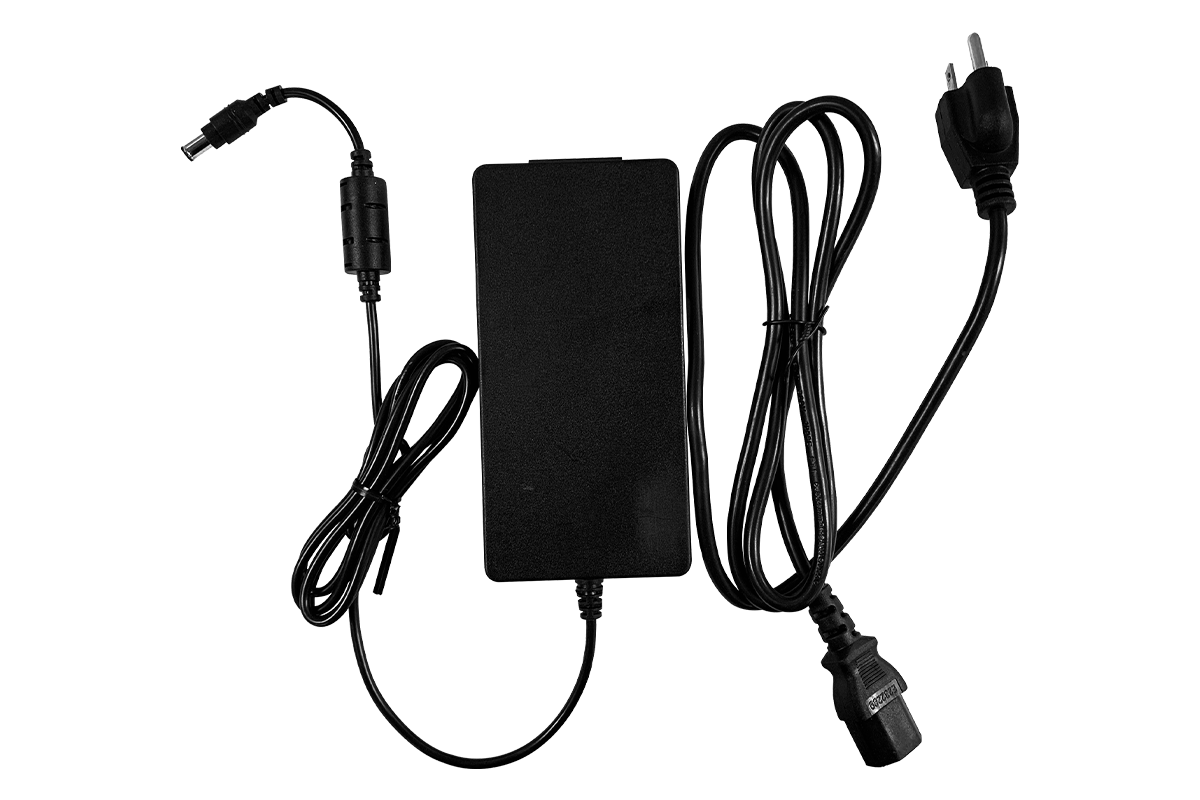

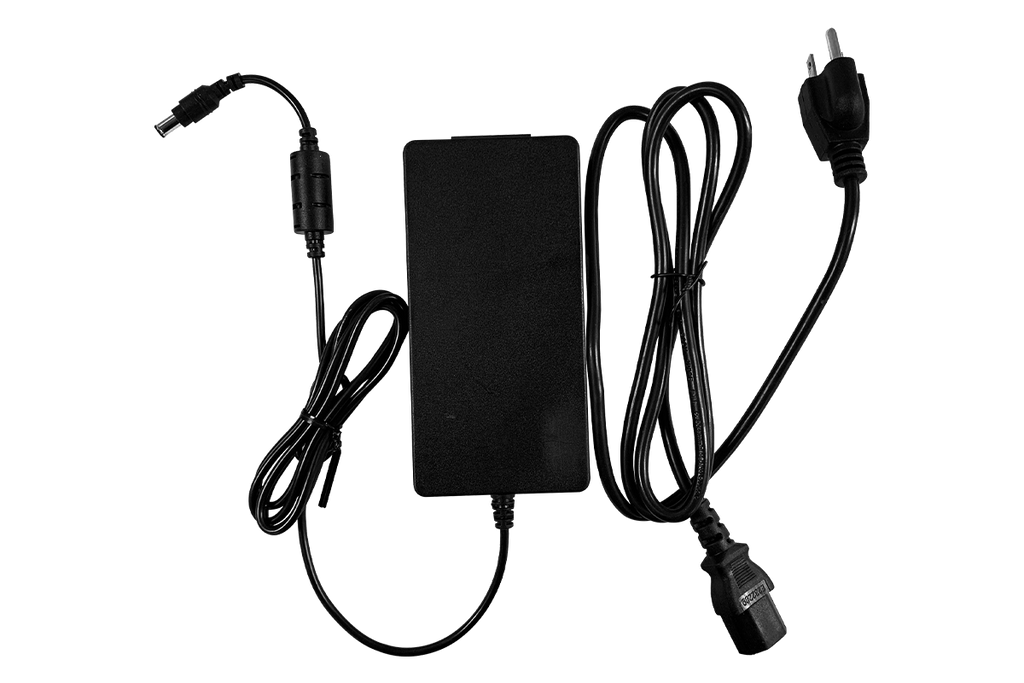

- Power Adapter & Cable
- Quick Installation Guide & Mounting Hardware
Specifications
| Specification |
Details |
| PoE Ports |
8 × 10/100 Mbps PoE (Power over Ethernet) |
| Uplink Ports |
1 × 100/1000 Mbps Base-T + 1 × 1000 Base-X (fiber capable) |
| Total PoE Budget |
Up to 120 W
|
| Hi-PoE Support |
Ports 1 & 5 may support up to 60 W each |
| ePoE Distance Range |
Up to 800 m at reduced data speed (E10 mode) |
| Standards Supported |
IEEE802.3, 802.3u, 802.3ab, 802.3af, 802.3at, Hi-PoE |
| Switching Capacity |
8.8 Gbps total |
| MAC Table Size |
8 K entries |
| Power Consumption |
Max ~120 W (PoE) |
| Operating Temperature |
-30 °C to 65 °C |
Ideal Use Cases
- Large residential and estate camera networks
- Commercial and industrial surveillance installations
- Long-distance PoE camera deployment without intermediate power sources
- IP camera systems requiring centralized power and data distribution
The Lorex AEX8 8-Port ePoE Switch enhances your wired surveillance infrastructure by enabling extended PoE coverage and flexible camera placement while maintaining reliable data transmission and power delivery across multiple devices.
