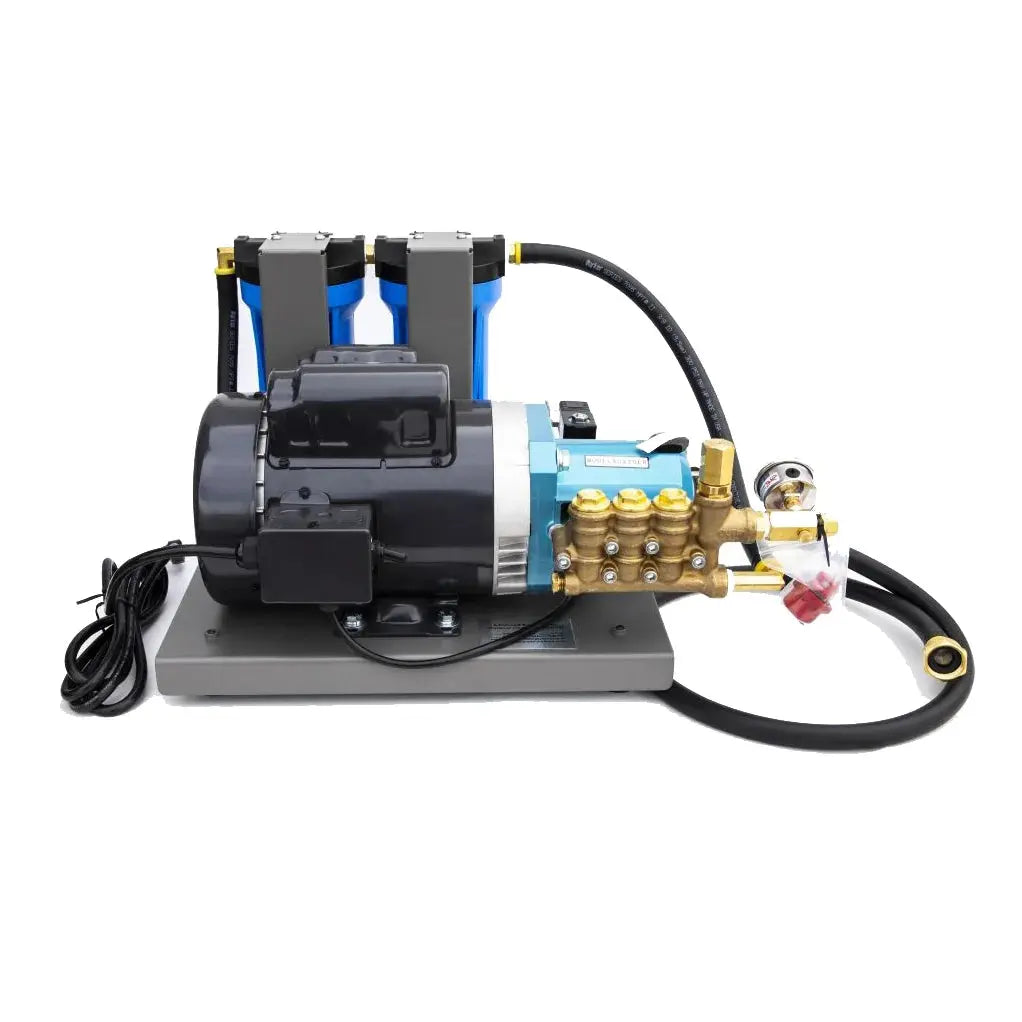

A 1,000 PSI direct-drive misting pump built around a high-quality Cat Pump core — the versatile choice for residential patios, commercial outdoor spaces, and any installation where proven high-pressure performance matters.
Operates on 120V or 220V. Features a TEFC electric motor with automatic thermal overload protection, start and run capacitors, triplex plunger design, and inlet pressure flooded to 60 PSI. Includes an inlet solenoid valve, liquid-filled pressure gauge, 5-micron and scale reduction filters, adjustable pressure regulator, and drain valve. Plug-and-play ready out of the box. Powder-coated finish. 3-year warranty.
| Specification | Detail |
|---|---|
| Pressure | 1,000 PSI |
| Flow Rate Options | .33 / .50 / 1.0 / 1.5 / 2.1 / 3.0 GPM |
| Voltage | 120V or 220V |
| Motor | TEFC (Totally Enclosed Fan-Cooled) |
| Pump Core | Cat Pump — triplex plunger design |
| Inlet Pressure | Flooded to 60 PSI |
| Max Liquid Temp | 140°F |
| Crankcase Capacity | 8.5 oz |
| Filtration | 5-micron + scale reduction filter |
| Solenoid Valve | Inlet solenoid included |
| Safety | Motor overload protection, low-pressure safety switch |
| Regulator | Adjustable pressure regulator |
| Gauge | Liquid-filled pressure gauge |
| Drain Valve | Included |
| Weight | 63 lbs |
| Dimensions | 24" L × 12" W × 13" H |
| Rating | Outdoor rated |
| Manual |
